Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, announced the arrival of the GOT5120T-845, its new 12.1-inch fanless touch panel computer featuring Intel® Celeron® N3060 dual-core processor. This cost-effective industrial touch panel PC offers options of XGA color resolution 1024 x 768 TFT LCD display with brightness 500 nits or SVGA color resolution 800 x 600 TFT LCD display with brightness 450 nits. For wireless network connection, the power-efficient 12.1” IP65 / NEMA 4 industrial human machine interface provides two full-size PCI Express Mini Card slots and a built-in WLAN antenna. With its slim, extremely light weight and fanless design, the GOT5120T-845 is well-suited for use in shopping malls and supermarkets as a self-service kiosk and in smart factory automation, medical & healthcare industry, and building automation applications.
“The Axiomtek GOT5120T-845 has a slim industrial rugged design with a 52.5 mm thickness, allowing for easy installation in a space-constrained environment. The 12.1” touch panel PC adopts IP65-rated water/dust-proof front bezel and is able to withstand temperature ranges from 0°C to 50°C. Furthermore, with patented plastic plus aluminum mechanism design, its back chassis can dissipate the heat easily and keep operation stably,” said Ivy Lee, product manager of Product PM Division at Axiomtek. “Additionally, the industrial-grade Intel® Braswell touch panel system comes with an easy-to-deploy design and advanced touch experience for a variety of commercial and industrial applications.”

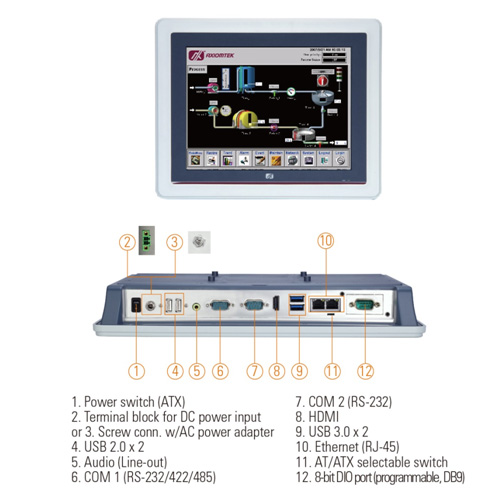

Designed to fit various applications needs, the 12.1-inch IP65 touch panel system comes with rich I/O options, including one RS-232 port, one RS-232/422/485 port, one 8-bit DIO port, two USB 2.0 ports, two USB 3.0 ports, two Gigabit LAN ports, audio (line-out) and HDMI. One 2.5” SATA HDD and one mSATA are available for sufficient storage. The Intel® Braswell dual-core GOT5120T-845 provides two types of power input: DC power with terminal block connector and AC power adapter with screw type connector. To ensure that the fanless panel PC can be integrated into a variety of different locations, it supports panel mount, wall mount, VESA arm and desktop stand. Embedded OS support includes Windows® 10, Windows® 8.1, Windows® 7, WE8S or WES7.
Axiomtek’s 12.1-inch power-efficient industrial touch panel PC, the GOT5120T-845, will be available soon. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- 12.1" XGA/SVGA TFT LCD display with LED backlight
- Fanless design with Intel® Celeron® processor N3060 2 cores (up to 2.48 GHz)
- One 204-pin SO-DIMM slot supports DDR3L-1600 up to 8GB
- Supports 2.5" SATA SSD and mSATA with easy access design
- Supports 2 Gigabit LANs, 4 USB, 2 COM ports and optional speakers
- IP65 front bezel design
- Optional panel mount, wall mount, VESA arm and desktop stand
- External AT/ATX mode selectable switch
- Supports RFID (optional)
- Adjust RS-232/422/485 setting via BIOS
