Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - today is unveiling its NA345, a compact network security appliance featuring the latest Intel® Atom™ x5-E3930 processor up to 1.8 GHz (codename: Apollo Lake) which is based on Intel next generation entry-level IoTG platform with 14 nm silicon process technology. Four gigabit Ethernet ports with Intel® i211 controller are integrated into this unit with one pair supporting LAN bypass. The desktop network appliance supports one DDR3L-1600 SO-DIMM slot with maximum of up to 8GB memory. For storage, it also provides one mSATA and 2.5” SATA hard disk drive. This slim type Intel® Apollo Lake network appliance is an ideal solution for VPN, content filtering, UTM, network security gateway, and firewall.
The compact NA345 equipped with extremely low power processor and high system stability delivers significant benefits in performance and TCO, giving users increased ROI and competitive advantages. “To enhanced reliability, the new NA345 supports data protection via one group latch-type LAN bypass function for fail-over option and features BIOS redirection to console port. It also has acquired EN 60950-1, FCC Class B and CE Class B certifications. The NA345 adopts slim type design, which measures 44 mm x 231.9 mm x 152 mm, for use in condition-limited environments. Upgrading your networking solution with Axiomtek’s NA345 will bring you great value with flexibility, scalability and field-proven reliability,” said Eva Wu, product manager at Axiomtek.

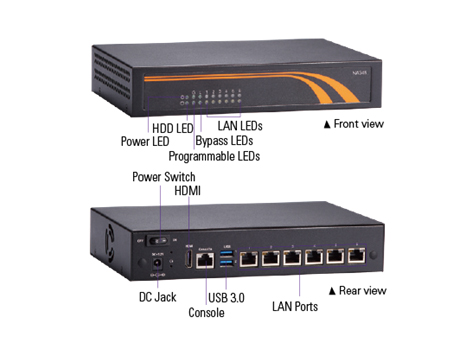

The cost-efficient NA345 incorporated a pair of USB 3.0 ports, a serial console port, and an HDMI port. Internal PCI Express Mini Card socket enables the addition of Wi-Fi, 3G, or LTE wireless cards. Front-facing LED indicators are available for convenient monitoring of power, hard disk status, link activity with transfer rate, and LAN bypass. Moreover, to ensure reliable operation, the NA345 supports watchdog timer. This desktop network communication platform is compatible with Win 10 and Linux (Yocto project).
NA345, Axiomtek’s 4-LAN network appliance, will be available in Q4 2016. For more product information or ODM/OEM projects, please visit us at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Main Features
- Intel® Atom™ x5-E3930 processor up to 1.8 GHz (Apollo Lake)
- Supports up to 8GB DDR3L-1600 SO-DIMM system memory
- Supports four 10/100/1000 Mbps Ethernet ports (maximum up to six Ethernet ports)
- One pair LAN bypass (optional)
- Supports wireless/3G/LTE through PCI Express Mini Card
- Supports BIOS redirection to COM port
- Supports Win 10 and Linux operating systems
- Slim and compact design in the size of 44 mm (1.73") (H) x 231.9 mm (9.00") (W) x 152mm (5.98") (D)
