Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is unveiling the IFB122, an extremely compact RISC-based DIN-rail industrial IoT gateway powered by the low-power Freescale i.MX 6UL-2 processor in the ARM® Cortex™-A7 micro architecture. Designed to meet the challenges in critical environments, it supports extended operating temperature ranging from -40°C to 70°C, flexible wide voltage range 9V - 48V DC power input, and can withstand vibration up to 5G. One PCI Express Mini Card slot, one SIM card slot, and two internal antennas are available for Wi-Fi and 3G/4G connections. With the abilities to transmit data and manage various devices, the IP40-rated ready-to-run IFB122 is definitely a cost-effective solution for remote control/monitoring management applications such as unmanned control room, industrial machine, automatic parking lot, traffic cabinet, etc.
“Based on the RISC architecture, the budget-friendly industrial gateway has lower heat output and lower power consumption, making it suitable for applications which demand a balance between power and performance,” said Jessie Wu, product manager of Software and Solution Division at Axiomtek. “The built-in serial port, LAN port and USB port provide faster and more efficient data computation, communication and acquisition. Besides, digital input/output interfaces are available to support a wide variety of test and measurement applications. The wall mount bracket included with the IFB122 enables flexible installation.”

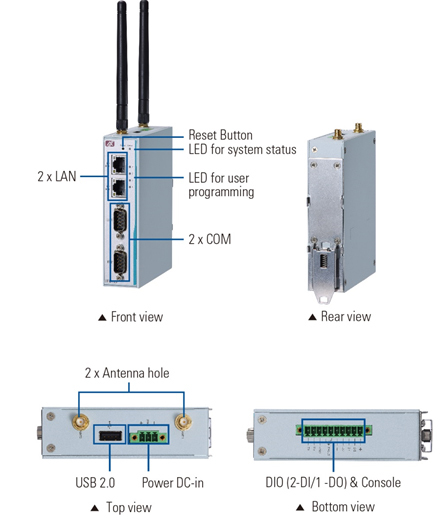

Utilizing the power-efficient ARM® Cortex™-A7 processor, the robust DIN-rail fanless gateway comes with one 256MB DDR3 onboard memory and one 4GB eMMC flash memory for storage. While measuring only 31 x 100 x 125 mm in size, it has rich I/O connections including two RS-232/422/485 ports, two 10/100 Mbps LAN ports, one USB 2.0 port, and one digital I/O (2-IN/1-OUT). LED indicators on the front panel show the status of the device. The industrial grade DIN-rail embedded platform comes with Yocto embedded Linux to provide an open standard operating system for software program development.
The Axiomtek IFB122 is available now. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- Fanless operation with RISC-based (i.MX 6UltraLite) processor, @528 MHz
- 256MB DDR3 SDRAM onboard
- 4 GB eMMC Flash onboard
- 1 Wireless socket (Wi-Fi or 3G/4G)
- 2 LAN ports
- Wide range DC power input (9 - 48V) with terminal block
- Ready-to-run embedded Linux operating system (Yocto)
- Wide operating temperature range from -40°C to +70°C
