Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is unveiling the eBOX640-500-FL, its new high-performance fanless embedded system powered by the 7th generation Intel® Core™ i7/i5/i3 and Celeron® processor families. It features dual DDR4-2133 DIMM sockets with up to 32GB of system memory, and provides a wide choice of front-accessible I/O interfaces for easy cabling and maintenance. This high-performance IP40 embedded box PC is suitable for embedded controller, cloud computing servers, multimedia applications, security surveillance, industrial automation, and many more.
The eBOX640-500-FL with optimized thermal designs could operate silently and minimize system power consumption. Front panel I/O access is offered to satisfy special configurations where rear access is not available especially for space-constrained applications. Axiomtek’s high quality assures product long life cycle and uninterrupted operation. “Designed with powerful 7th generation Intel® Core™ processor and graphics, the eBOX646-500-FL packs big performance in a compact size and provides a significant upgrade. It supports an extended operating temperature ranging from -10°C to +55°C, a wide voltage range DC power input from 10 to 30 VDC with power protection, and up to 2G vibration endurance, enabling a reliable and stable operation in harsh environment. The superior Intel® Kaby Lake-based fanless embedded box PC can support three independent high resolution displays and 4K resolution, offering high quality imaging,” said Janney Lee, product manager of Product PM Division at Axiomtek.
To enhance wireless communication capabilities, the compact embedded system provides one PCI Express Mini Card slot and one SIM card slot. For storage needs, it is equipped with dual 2.5” SATA hard drive bays and one mSATA interface. The abundant I/O connectors includes one RS-232/422/485, three RS-232, two Gigabit Ethernet, two USB 2.0, four USB 3.0, one audio (Mic-in/Line-out), one HDMI, one DisplayPort, one VGA, and two SMA type connector openings for antenna. The outstanding industrial embedded system runs well with the WE8S and Windows® 10 IoT. Wall mount kit is available upon request.
The Axiomtek eBOX640-500-FL will be available in February, 2017. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- LGA1151 socket 6th/7th generation Intel® Core™ i7/i5/i3 & Celeron® processor families
- Two 288-pin DDR4-2133 DIMM sockets, up to 32GB
- Fanless operation, compact design with desktop performance
- 4 COM (1 x RS-232/422/485, 3 x RS-232), 2 Gigabit LAN and 4 USB 3.0 ports
- Two 2.5" SATA drive bays
- 1 PCI Express Mini Card slot and 1 SIM slot

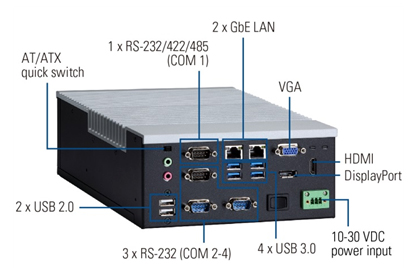

- Front panel I/O connectivity design
- 10-30 VDC wide range power input
