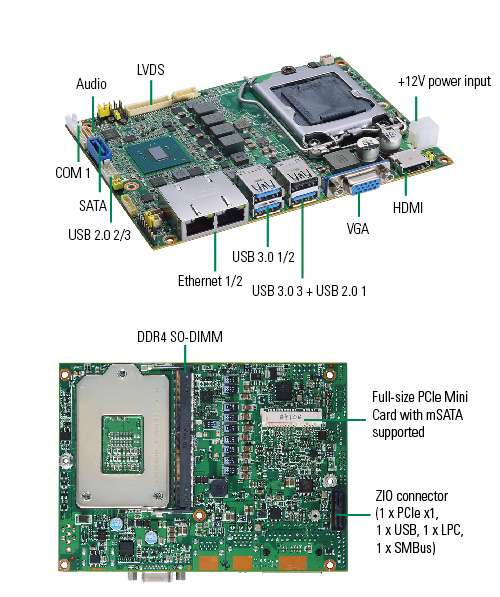

Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is pleased to launch the CAPA500, its new 3.5” embedded board featuring the LGA1151 socket 7th generation Intel® Core™ processor family (codename: Kaby Lake) with 35W TDP (thermal design power), as well as the Intel® H110 chipset (Q170 optional). The CAPA500 supports one 260-pin DDR4-1867 SO-DIMM with a memory capacity up to 16GB for extensive storage. The compact 3.5-inch embedded motherboard also offers display outputs through HDMI, VGA and LVDS for triple independant display applications. Moreover, the compact-sized embedded board runs on +12 VDC power, supporting auto power-on. It can operate at a wide range of temperatures from -20°C to 70°C under active thermal control. The 146 mm x 104 mm embedded SBC is suitable for IoT/M2M-related, industrial control, self-service terminal, digital signage, POS, kiosk and many other applications where high-speed processing and graphics performance under limited space is required.
“Axiomtek’s brand new industrial-grade 3.5-inch embedded board is designed to fit scalable CPU options in the LGA1151 socket, delivering rich I/O connectivities and great expansion possibilities. The Intel® Core™ -based CAPA500 comes with a full-sized PCI Express Mini Card slot with mSATA supported and, optionally, a unique ZIO connector for additional PCIe x1, LPC and USB ports, giving this SBC high expandability to meet customer specific needs. The compact-sized embedded board provides outstanding expandability to suit user demands," said Michelle Mi, a product manager of Product Planning Division at Axiomtek.
The highly integrated embedded board provides one RS-232/422/485 port with +5V/+12V power, one SATA-600 interface, dual Gigabit Ethernet ports with intel® i211AT and intel® i219LM controllers, three USB 2.0, three USB 3.0 ports, HD audio and one 8-channel DIO port. To ensure reliable operation, the 3.5-inch embedded SBC supports watchdog timer, hardware monitoring and Intel® AMT 11 features.
CAPA500 - Axiomtek’s brand new Intel® Kaby Lake-based 3.5” single board computer - is available now. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Main Features
- LGA1151 socket for 7th/6th generation Intel® Core™ i7/i5/i3 processor families (Kaby Lake/ Skylake)
- One DDR4-1867 SO-DIMM, up to 16GB
- Intel® H110 chipset (Q170 optional)
- 1 COM (RS-232/422/485), 3 USB 3.0, and 3 USB 2.0 ports
- Intel® AMT 11 supported (optional)
- VGA, HDMI and LVDS with triple-view supported (Q170 optional)
