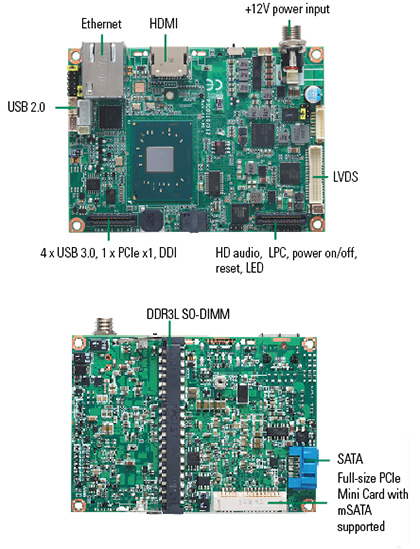

Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is introducing PICO312, a palm-sized fanless pico-ITX motherboard built with the latest 14 nm quad-core Intel® Pentium® processor N4200 or dual-core Celeron® processor N3350 (codename: Apollo Lake SoC). One 204-pin DDR3L-1867 SO-DIMM socket supports system memory up to 8GB. The tiny 2.5” pico-ITX embedded board features Intel® Gen9 graphics engine bringing a true high definition visual experience with dual display configurations through one LVDS and choice of one VGA or HDMI. In addition, it was designed for special needs of fanless operation under temperature from -20°C to +70°C. Its compact size also suits the PICO312 to various space-constrained embedded applications. This embedded SBC is excellent for any media editing, imaging, graphics and video intensive applications popular in industrial IoT field.
“The newest Intel® Apollo Lake-based 2.5-inch embedded motherboard, PICO312, features a full-sized PCI Express Mini Card slot in support of mSATA and a pair of expansion connectors with additional signals including one PCIe x1 lane, one LPC, one DDI, four USB 3.0 ports, one SMBus and one HD audio, giving this SBC high expandability to meet all requirements,” said Ken Lin, product manager of Product PM Division at Axiomtek.
The PICO312 comes with advanced connectivity including one USB 2.0 port, one Gigabit Ethernet (built-in Intel® Ethernet controller i211AT), and one SATA-600 interface. To ensure reliable operation, the Pico-ITX 2.5-inch motherboard also utilizes advantages of Watchdog Timer to detect and recover from computer malfunctions; and that of hardware to monitor temperature, voltage, fan speed, and more. Moreover, the I2C connector is available as a communication protocol to connect Axiomtek’s different battery solutions with AXView - Axiomtek’s intelligent remote management software - to monitor battery status.
Axiomtek's PICO312 is scheduled to go into the market in the end of March. For more product information or pricing, please contact one of our sales representatives at info@axiomtek.com.tw.
Axtiomtek boasts itself for over 25 years of experience in design-in service and customized thermal solutions, embedded software supports, and modularized accessories to meet different levels of customized services. To facilitate customers’ quick access to up-to-date documents, Axiomtek Technical Portal (ATP), our web-based support service, allows users to download technical design guides, mechanical 2D/3D drawings, and software utilities.
Main Features
- Intel® Pentium® processor N4200 & Celeron® processor N3350 (Apollo Lake SoC)
- 1 DDR3L-1867 SO-DIMM max. up to 8GB
- 1 USB 2.0 and 1 Gigabit LAN port
- 1 Full-size PCI Express Mini Card slot with mSATA supported
- Expansion connectors for I/O board (one PCIe x1 lane, LPC, SMBus, DDI, USB 3.0 and audio signals)
- Fanless yet noiseless operation
- Wide operating temperature range supported from -20°C to +70°C
