Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is proud to announce the CAPA318, a fanless 3.5-inch embedded motherboard, featuring Intel® Pentium® processor N4200 or Celeron® processor N3350 (codename: Apollo Lake) with low power consumption. The CAPA318 can be ideally applied to extended temperature environment from -20°C to +70°C. It was designed to support one 204-pin DDR3L-1867 SO-DIMM with a memory capacity up to 8 GB. Furthermore, the compact-size embedded board with an emphasis on expandability offers two full-size PCI Express Mini Card slots. Due to its small form factor design, it allows developers to build compact or thinner embedded systems. This cost-effective 3.5”embedded motherboard is suitable for IoT/M2M related applications, industrial control, self-service terminals, digital signage, POS/kiosk displays, just name a few.
“Axiomtek’s brand new industrial-grade 3.5-inch embedded board, CAPA318, is highly expandable and customizable. Its compact and fanless design makes it perfect for use in space constricting environments. Additionally, the 3.5” single board computer can handle a wide operating temperature range from -20°C to +70°C (-4°F to +158°F) and requires +12V DC power input to ensure operational stability in a variety of harsh environments,” said Ken Lin, a product manager of Product Planning Division at Axiomtek. “Axiomtek aims to provide an ideal single board computer that comes with small form factor, lower power consumption, rugged design and complete I/O functions for a wide array of applications.”

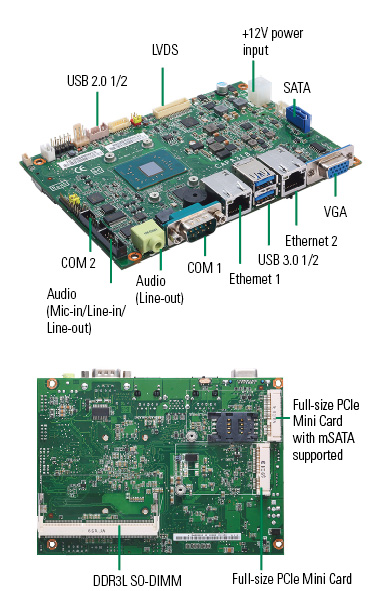

The integrated 3.5-inch embedded board is equipped with two RS-232 ports, two USB 3.0 ports, two USB 2.0 ports, 8-IN/OUT digital I/O, VGA port, LVDS port, and dual Gigabit Ethernet ports with Intel® i211AT Ethernet controller. For storage needs, the CAPA318 provides one SATA-600 socket and one mSATA interface.
CAPA318 - Axiomtek’s brand new Intel® Apollo Lake-based 3.5” single board computer - is available around mid-May. For more product information or pricing, please contact one of our sales representatives at info@axiomtek.com.tw.
Main Features
- Intel® Pentium® processor N4200 or Celeron® processor N3350 (Formerly codename: Apollo Lake)
- 1 DDR3L-1867 SO-DIMM, up to 8 GB
- 2 USB 2.0 and 2 USB 3.0 ports
- PCI Express Mini card with mSATA supported
- 2 Gigabit Ethernet ports support Wake-on-LAN
- Wide operating temperature range from -20°C to +70°C (-4°F to +158°F)
