Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is announcing the eBOX700-891-FL, a fanless embedded system powered by the 7th generation Intel® Core™ i7/i5/i3 and Celeron® processors (codename: Kaby Lake) with the Intel® H110 chipset. It supports dual DDR4-2133 SO-DIMM slots with up to 32GB system memory. This embedded box PC comes with a user-friendly mechanism design and offers great flexibility, reliability, and scalability, well suited for vision inspection (USB/PoE), motion control, security surveillance and industrial automation.
“The eBOX700-891-FL is designed with user friendliness in mind. Its heatsink top cover can simply be opened by unfastening the four screws for the access to the processor and DRAM. Moreover, its bottom cover adopts a convenient flip lid design along with easy-to-access brackets for securing the USB dongle and hard drive,” said Janney Lee, product manager of Product PM Division at Axiomtek. “Axiomtek has obtained patents, No. M511183 and No. M531115, for the special chassis design of the eBOX700-891-FL. Easy maintenance is one of the advantages we are offering to our customers and one of the main focuses of our product development. We will continue pursuing excellence and innovation in design and manufacturing.”

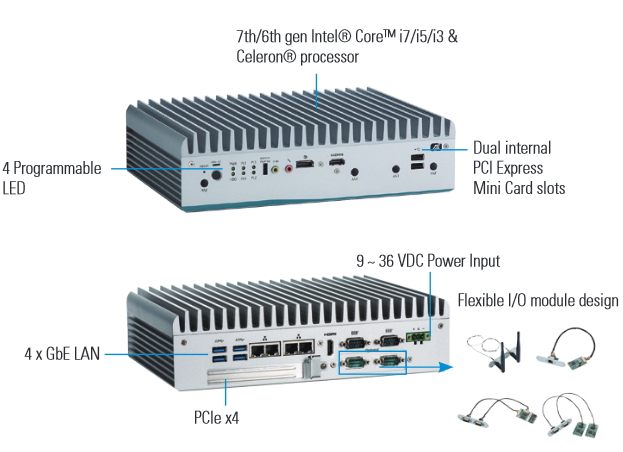

To reduce deployment time, the Intel® CoreTM-based fanless system reserves a space on its panel for customers to quickly and easily install an additional I/O module including CAN bus/CAN open, LAN, DIO and COM modules. Integrated with an IP40-rated heavy-duty aluminum extrusion and steel case, it supports a wide range 9V to 36V DC power input with power protection, a wide operating temperature range of -40°C to +50°C, and up to 3G vibration endurance to ensure excellent stability and reliability in harsh environments. The outstanding eBOX700-891-FL comes with rich I/O interfaces including four RS-232/422/485 ports, four USB 3.0 ports, two USB 2.0 ports, four GbE LAN ports, two HDMI ports, one DisplayPort, and one audio (Mic-in/Line-out). It also features a user-friendly AT/ATX DIP switch for adjustments between automatic and manual operation control.
Furthermore, the high-performance Intel® Kaby Lake-based fanless embedded PC is feature-rich, with vast expansion capabilities including two PCI Express Mini Card slots, one SIM slot and one PCIe x4 slot. For storage needs, it is equipped with one 2.5” SSD/HDD and one optional mSATA interface. The fanless embedded system supports Windows® 10 IoT and Linux. To meet different application needs, it can be wall-mounted or DIN-rail mounted upon request.
The easy-maintenance eBOX700-891-FL will be available in September 2017. For more product information or ODM/OEM projects, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
