Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is launching the MANO310, a mini-ITX motherboard based on the Intel® Pentium® processor N4200 and Celeron® processor N3350 (formally codename: Apollo Lake). The embedded motherboard has two 204-pin DDR3L-1867 SO-DIMM sockets supporting a total capacity of 8 GB system memory. It offers one SATA-600 and M.2 SSD connectors for SATA storage devices. A wide range DC input from 12V to 24V makes the power input selection more flexible for a variety of automation and embedded applications. Furthermore, the industrial grade mini-ITX motherboard features one PCI Express x1 slot and one PCI Express Mini Card slot to enhance its expansion ability. Triple-display capability is available through the HDMI, VGA and 18/24 bit single/dual channel LVDS. The brand-new MANO310 is an ideal solution for automation, retail, digital signage, medical and other Industrial IoT-related applications.
“The MANO310 takes advantage of the Intel® Apollo Lake SoC provides customers with advantageous energy-saving and cost-effective choice. Besides, every element is carefully considered to ensure our MANO310 maintains the versatile and high quality operations in dealing with a wide range of applications such as in-vehicle infotainment, mobile kiosk, gaming, digital entertainment, signage, and much more applications,” said Michelle Mi, product manager of Product PM Division at Axiomtek.

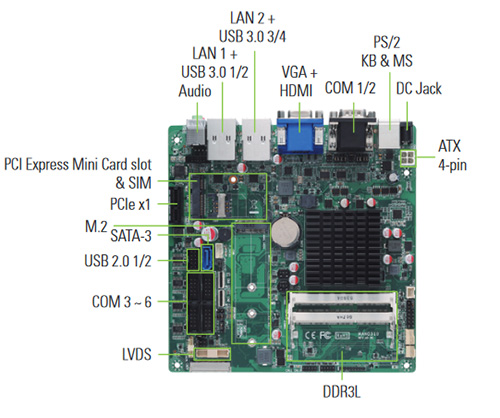

The Axiomtek MANO310 comes with rich I/O interfaces including two RS-232/422/485 ports, four RS-232 ports, four USB 3.0 ports, two internal USB 2.0 ports, two Gigabit LAN ports, eight-channel digital I/O, and one PS/2 keyboard/mouse. Its one SATA-600, one M.2 and SDXC allow storage requirements to be met with ease. The Intel® Apollo Lake-based industrial mini-ITX motherboard is available with one PCI Express Mini Card slot and one SIM card socket for easy 3G/4G, GPS, Wi-Fi and Bluetooth connections, as well as a PCIe x1 slot for flexibility in adding additional cards. To ensure reliable operation, the motherboard also utilizes a watchdog timer to detect and recover from computer malfunctions and hardware monitoring features to monitor temperature, voltage, fan speed, and more.
Axiomtek’s MANO310 is available now. For more product information or pricing, please visit our global website at www.axiomtek.co.uk or contact one of our sales representatives at info@axiomtek.com.tw.
Main Features
- Intel® Pentium® processor N4200 & Celeron® processor N3350 (Apollo Lake SoC)
- 2 DDR3L-1867 SO-DIMM sockets, up to 8GB
- PCI Express Mini Card and PCIe x1 slots
- 2 GbE, 4 USB 3.0 and 2 USB 2.0 ports
- 1 SATA-600, 1 M.2 and 1 SDXC
- 6 COM ports supported
- 12 to 24 VDC power input
- VGA, HDMI and LVDS with triple-view supported
