Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is proud to introduce its newest dual-slot fanless industrial barebone system, the IPC962-512-FL. The high-performance industrial PC adopts an innovative modular design for easily customized and scaled based on customer needs. The IPC962-512-FL is powered by the 7th/6th generation Intel® Core™ and Celeron® processors (codename: Kaby Lake/Skylake) with the Intel® Q170 chipset. It is equipped with dual DDR4-2133 SO-DIMM slots with up to 32GB system memory. The ultra-compact industrial computer supports two swappable 2.5" HDDs; moreover, it offers flexible expansion options with one I/O module slot and two PCI/PCIe slots. It also has a wide operating temperature range of -10°C to +60°C and a 24VDC (uMin=19V / uMax=30V) power input for severe environments. According to the features above, this rugged IP40 industrial PC is a great choice for a wide variety of Industrial IoT applications including automatic optical inspection, digital signage, motion control, and factory automation.
"The IPC962-512-FL has a fresh new look with great configuration choices and scalability meeting the diverse needs of customers across a broad range of sectors. To deliver easy and quick deployment, the IPC962-512-FL has two swappable 2.5" HDD trays that are available for extensive storage needs," said Ivy Lee, a product manager of Product PM Division at Axiomtek. "Its dual expansion slots and a variety of I/O ports allow system developers to add a diverse range of peripheries according to their needs. In a specific point, the IPC962-512-FL aims to applications requiring high ruggedness and high flexibility under mission-critical environments."
There are various extension modules, including a 4-port isolated RS-232/422/485 module; an isolated 8-in/8-out DIO module; and a 2-port isolated RS-232/422/485 and 4-in/4-out DIO module, which can provide system integrators with a less cabling solution for a lower total cost of ownership. Additionally, the compact industrial PC provides two flexible PCI/PCIe expansion slots with options of one PCIe x16 and one PCIe x4; one PCIe x16 and one PCI; or 2 PCI.

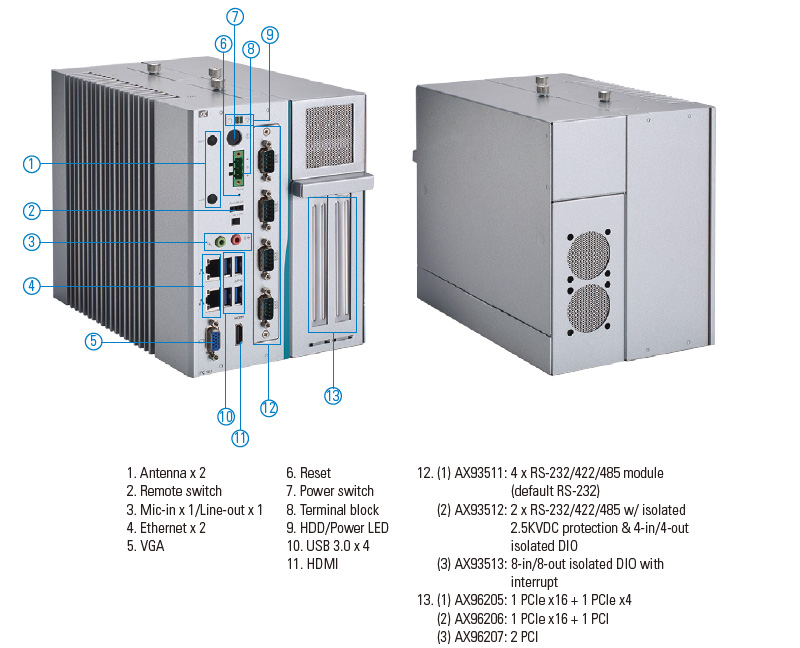

The IPC962-512-FL features a wide choice of front-facing I/O connectors, including two Gigabit LAN ports, four USB 3.0 ports, one VGA port, one HDMI port, one 3-pin terminal block, and one audio (Mic-in/out) port. The all-in-one embedded box computer has a full-size PCI Express Mini Card slot for 3G/4G, GPS, Wi-Fi and Bluetooth connection. Moreover, a user-friendly external AT/ATX DIP switch is for choosing the AT and ATX mode.
Axiomtek's IPC962-512-FL, the dual-slot rugged industrial computer, is going to be available in May, 2018. For more product information or pricing, please visit our global website at www.axiomtek.co.uk or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor, up to 35 W (codename: Kaby Lake/Skylake)
- Intel® Q170 chipset
- Supports 2 expansion slots
- Supports power input: 24VDC (uMin=19V / uMax=30V)
- Compact & front I/O design
- Wide operating temperature range of -10°C to +60°C
- Equipped with 2 swappable 2.5" HDD trays
- Supports optional WLAN module & antenna
