Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is pleased to introduce its newest 17” industrial touch panel PC with rich connectivity, the P1177E-500. This rugged touch panel computer features scalable CPU options with the LGA1151 socket 7h/6th generation Intel® Core™ i7/i5/i3, Celeron® or Pentium® processors with the Intel® H110 chipset. The P1177E-500 comes in a 17-inch XGA TFT LCD display with 5-wire resistive touchscreen and 250 nits of brightness; it also adopts a robust IP65 compliant aluminum front bezel. This all-in-one panel PC is proper to use in multi-media kiosks or as a human machine interface (HMI) for industrial automation applications.
"This fashionable panel pc has friendly less screw design which is very convenient for installation and maintenance. Its scalable CPU options, rich and customizable I/Os and easy-to-integrate features were designed to deliver true value to customers," said Raymond Liao, a product manager of Product PM Division at Axiomtek. "The robust all-in-one computer adopts an industrial-grade design and IP65-rated front bezel which makes it the perfect fit in industrial applications. It features dual DDR4-2133 Long-DIMM sockets for up to 32GB of system memory. It also has one PCIe x4 or PCI slot for integration with a variety of add-on cards."

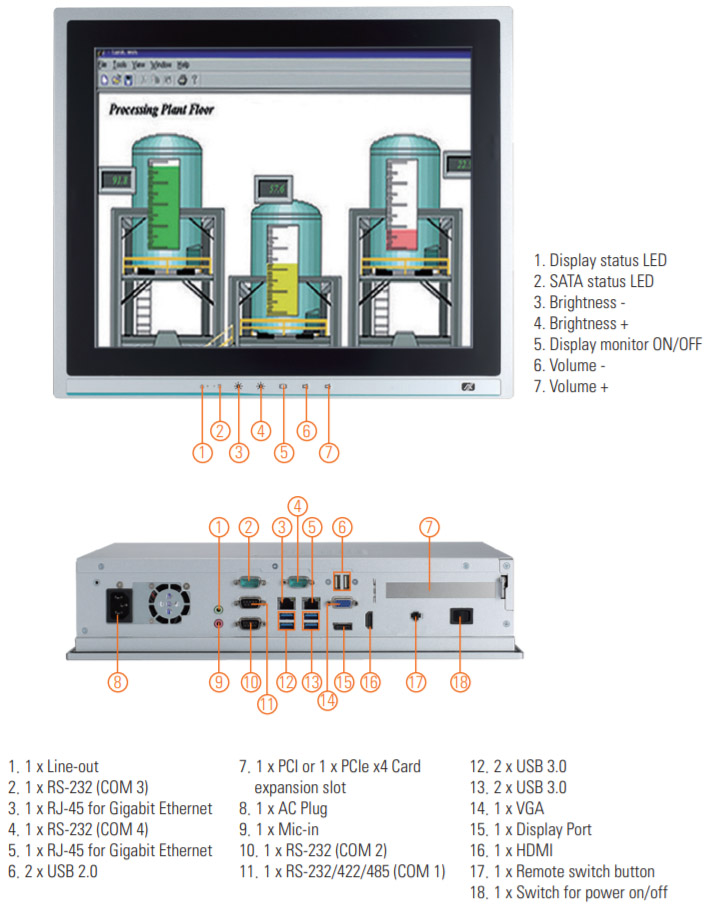

There is a variety of I/O interfaces including four USB 3.0 ports, two USB 2.0 ports, three RS-232 ports, one RS-232/422/485 port, two Gigabit Ethernet ports (built-in Intel® I211-AT Ethernet Controller), one audio (Mic-in/Line-out), one VGA, one HDMI, one DisplayPort, and one remote power switch. For extensive storage options, it supports one 2.5” or 3.5” SATA HDD or two 2.5” SATA HDD upon request. It also comes with built-in speakers for use in multimedia kiosk applications and offers an optional Wi-Fi 802.11 b/g/n module and WLAN antenna for wireless connectivity.
The P1177E-500 has a wide operating temperature range of 0°C to +50°C (0°F to +122°F). Front-facing LED indicators allow users to easily check the hard drive and display status. To ensure this Intel® Core™-based touch panel PC can be integrated into different settings, it can be mounted using a desktop stand, VESA arm or wall mounting. It supports a variety of operating systems including Windows® 10, Windows® 8.1 and Windows® 7. Axiomtek’s P1177E-500 is available from now. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- 17" XGA TFT LCD display
- LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors
- Intel® H110 chipset
- Less screw design for easy installation
- 4 USB 3.0, 2 USB 2.0 and 4 COM
- One PCIe x4 or one PCIe slot
- Built-in speakers and optional Wi-Fi 802.11 b/g/n module
- Robust IP65 compliant aluminum front bezel
- 5 OSD keys in front panel
