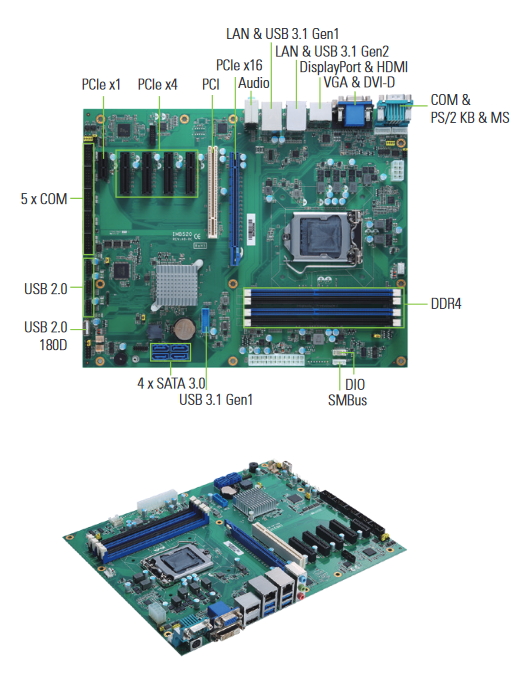

Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is introducing the IMB520, its new ATX motherboard powered by the LGA1151 socket 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (code name: Coffee Lake) with the Intel® Q370 chipset. The ATX motherboard supports four 288-pin DDR4-2666/2400 DIMMs with up to 64GB of system memory. The Intel® Coffee Lake-based IMB520 is a performance-driven motherboard that is expandable, feature-rich and versatile to help facilitate quick deployment. The brand new IMB520 is an ideal solution for automation, transportation, retail, medical and other Industrial IoT-related applications.
"The market for ATX motherboard is highly competitive. The IMB520's design meets not only the requirements of superb processing and graphics performance, but also takes extensive customization and flexibility into consideration," said Thomas Chuang, a product manager of IPC Division at Axiomtek. "The IMB520 provides one PCIe x16 slot, four PCIe x4 slots, one PCIe x1 slot and one PCI slot for frame grabbers, motion control cards and edge-based data acquisition cards, making it an ideal solution for machine vision and industrial automation application. It also has two USB 3.1 Gen 2 and four USB 3.1 Gen 1 ports for faster data transfer. In addition, the industrial-grade ATX motherboard is integrated with the Intel® HD Graphics for superb visual performance. Up to three independent displays are available from DisplayPort, DVI-D, HDMI, and VGA."
The ATX motherboard offers multiple I/O options, including four RS-232, two RS-232/422/485, two Gigabit LANs with Intel® Ethernet controller I211-AT and Intel® Ethernet connection I219-LM, six USB 3.1, seven USB 2.0, DisplayPort, DVI-D, HDMI, VGA, eight-channel digital I/O, one HD Codec audio, one SMBus, and one PS/2 keyboard and mouse. Furthermore, the IMB520 features four SATA-600 HDDs with RAID 0/1/5/10 function to enhance reliability, stability and data recovery capability. To ensure reliable operation across platforms, the well-designed industrial motherboard is capable of withstanding a wide operating temperature range of 0°C to 60°C. It also supports watchdog timer, hardware monitoring functions and optional Trusted Platform Module 2.0 (TPM 2.0).
IMB520 - Axiomtek's new industrial motherboard will be available at the end of January 2019. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- LGA1151 socket 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (code name: Coffee Lake)
- 4 288-pin DDR4-2666/2400 DIMMs for up to 64GB of memory
- Supports triple view via DisplayPort, DVI-D, HDMI and VGA interfaces
- 4 SATA-600 with RAID 0/1/5/10
- 2 USB 3.1 Gen 2 and 4 USB 3.1 Gen 1 ports
- Supports TPM 2.0 (optional)
