Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to unveil eBOX100-51R-FL, a fanless ultra-compact embedded system with weight 600 grams only. As the smallest embedded system with Intel® Core™ ULT processor onboard, the eBOX100-51R-FL continues the design elements of eBOX100 series – ultra-slim form factor, rugged design, and rich I/O connectivity, allowing greater flexibility and a wider ran¬ge of application in edge computing, IIoT gateway and extended fields.

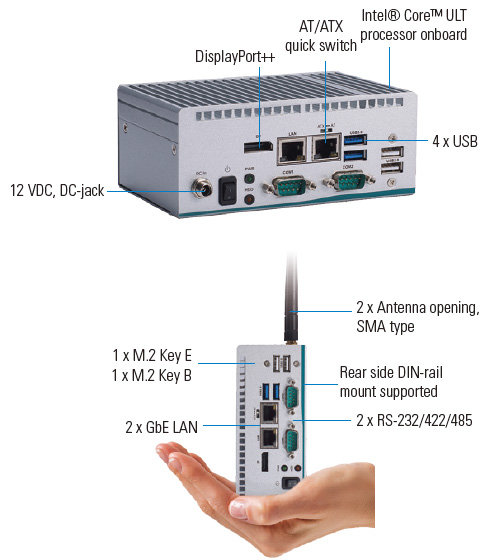

The eBOX100-51R-FL is powered by the high-performance Intel® Core™ i5-7300U or Intel® Celeron® 3965U processor. The front-facing I/O connectivity design provides convenient access for easy installation and maintenance. It comes with one DDR4-2133 SO-DIMM slot with system memory up to 16 GB. The eBOX100-51R-FL offers two RS-232/422/485, two USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one DisplayPort++, one AT/ATX quick switch, and two SMA type antenna openings; moreover, the embedded system is equipped with one M.2 Key E 2230 slot for Wi-Fi, one M.2 Key B 2242 for SATA storage, and one screw-type 12VDC power input connector.
“Axiomtek’s eBOX100-51R-FL has multiple mounting options for versatile use in various environments. Not only could it be wall mounting or VESA mounting, but also supports the DIN-rail mounting for typical industrial application. The flexible mounting options satisfied user requirements and easy deployment.” said Janney Lee, a product manager of Product PM Division at Axiomtek. “Besides, the ultra-compact embedded platform is compatible with Windows® 10 IoT and Linux. With an IP40-rated heavy-duty aluminum extrusion and steel case, it has a wide operating temperature range of -10°C to 50°C and vibration endurance for up to 3G. It has passed the strict certification with CE and FCC Class A.”
In tandem with helping customers to enhance the effectiveness in remote management, the outstanding eBOX100-51R-FL supports Axiomtek’s exclusive AXView 3.0 software, Intel® AMT 11 and Microsoft Azure. The reliable Intel® CoreTM-based embedded system provides customers an ideal solution for factory automation, industrial IoT edge computing, digital signage, kiosk, and smart retail. Axiomtek’s eBOX100-51R-FL is now available for purchase. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- Ultra-compact size with high performance
- Intel® Core™ i5-7300U or Celeron® 3965U (codename: Kaby Lake)
- M.2 Key E 2230 for Wi-Fi
- M.2 Key B 2242 for storage
- Azure certified and AXView 3.0 supported
- Supports Intel® AMT 11
- Multiple mounting designs: Wall mount, DIN-rail and VESA mount
