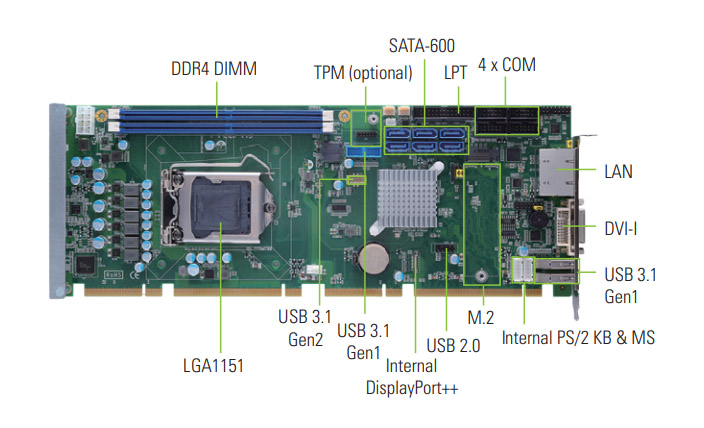

Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is pleased to announce the SHB150R, a new PICMG 1.3 single board computer with scalable CPU options including the Intel® Xeon®, 9th/8th generation Intel® Core™, Intel® Pentium® or Intel® Celeron® processors with the Intel® C246/Q370 /H310 chipset. The system host board has a maximum of six SATA-600 ports supporting software RAID 0/1/5/10 for data redundancy. The SHB150R features rich I/O options and high-speed transfer interfaces as well as superior graphics capability, making it an ideal solution for smart factory automation.
Axiomtek’s SHB150R comes with two 288-pin DDR4-2666/2400 Long-DIMM sockets with up to 64GB of system memory. It has one M.2 Key M 2280 SSD slot with a PCIe x4 interface (Intel® C246 or Q370). The full-size PICMG 1.3 system host board delivers a true high definition visual experience with the Intel® HD Graphics and offers triple display configurations (Intel® C246 or Q370) via DVI-I and DisplayPort++ (internal header) ports. For reliable operation in harsh environments, the SHB150R is capable of withstanding a wide operating temperature range of 0°C to 60°C. It is compatible with Windows® 10 and Linux operating systems.
“We have been offering a full range of expandable, high-performance and industry-specific single board computers to cater for a variety of applications. The SHB150R is equipped with flexible I/O connectivity and high-speed transfer interfaces such as PCIe x16 Gen3, USB 3.1 and SATA 3, and accommodates up to 64GB of DDR4 memory,” said Brandon Wang, the product manager of IPC Division at Axiomtek. “Moreover, the Intel® Coffee Lake-based SHB150R supports Intel® AMT and vPro for easy remote management and monitoring and optional Trusted Platform Module (TPM) 2.0 for optimum security,” he added.
The SHB150R adopts a rich array of I/O interfaces including two RS-232 ports, two RS-232/422/485 ports, two Gigabit LAN with Intel® Ethernet controller i211-AT and Intel® Ethernet connection i219-LM, two USB 3.1 Gen2 ports (Intel® C246 or Q370), four USB 3.1 Gen1 ports, six USB 2.0 ports, one HD Codec audio, one parallel port (LPT) and one PS/2 keyboard and mouse. To enhance the application flexibility, the PCIe x16 Gen3, PCIe x4 and conventional PCI slots on the board deliver an optimum solution for machine vision and automation applications. The powerful industrial single board computer also supports watchdog timer and hardware monitoring functions.
Axiomtek’s new PICMG 1.3 full-size single board computer SHB150R is now available for purchase. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E (Intel® C246), Pentium® or Celeron® processor (up to 95W)
- Intel® C246/Q370/H310 chipset
- 2 DDR4-2666/2400 Long-DIMM for up to 64GB of memory
- Supports Intel® AMT and vPro (C246/Q370)
- TPM 2.0 supported (optional)
- Supports M.2 Key M (C246/Q370)
