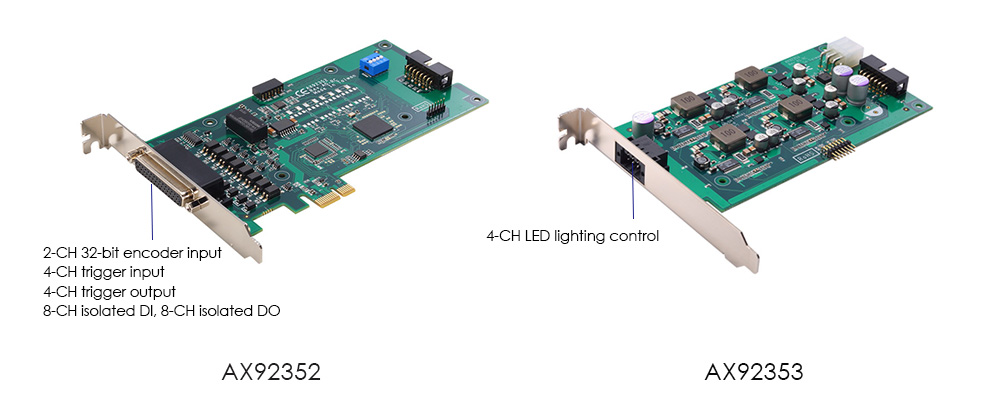

Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to introduce its AX92352 – a 2-CH encoder card with high-speed trigger function and AX92353 – a 4-CH lighting control module. The AX92352 and AX92353 were designed to help system integrators to deploy machine vision applications with ease.
The AX92352 is a PCI Express x1 vision card with encoder inputs and real-time controls. It features 2-CH 32-bit incremental quadrature encoder input with FIFO (first in first out) buffers. It also integrates 4-CH isolated trigger input and 4-CH isolated trigger output with microsecond-scale control and 8-CH isolated DI and DO for sensor and actuator control. With the support of encoder input and real-time I/O control, the AX92352 is able to synchronize multiple cameras in area scan applications. It also can record the encoder positions and trigger the cameras for inline production inspections.
Often the machine vision applications use strobe lighting to increase the light intensity for a short duration. It aims to make the captured image clear and free of distortion. The use of lighting control is therefore critical across the conveyor. The AX92353, a lighting control module, has 4-CH independent constant current LED drivers with the current-controlled method. It can simply manage the output of lighting control by supporting both the strobe mode and trigger mode. The output current is 1A per channel in the strobe mode; and 0.5A per channel in the trigger mode. To meet the needs of detecting objects, the lighting intensity can be easily controlled by a software setting. Duration and delay time for LED output are supported as well.
“The AX92352 and AX92353 integrate camera trigger, encoder input, digital I/O and LED output to connect and control all the vision devices. Through the real-time I/O and lighting control, it can manage the appropriate timing sequence to ensure the captures of the images are clear and high-quality. These advanced features enable system integrators to configure and deploy vision applications faster and easier,” said Wayne Chung, a product manager at Axiomtek.
Axiomtek’s AX92352 and AX92353 are now available for purchase. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features of AX92352:
- Synchronizes devices via real-time I/O
- Applied to area scan and line scan applications
- Integrates multiple I/O
2-CH 32-bit incremental quadrature encoder input
4-CH trigger input
4-CH trigger output
8-CH isolated DI, 8-CH isolated DO
- Programmable interrupt functions
- PCI Express x1 compliant
Advanced Features of AX92353:
- 4-CH independent constant current LED drivers (up to 1 A)
- Supports strobe and trigger mode
- Intensity control by software
- Supports duration and delay time for LED output
