Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is pleased to announce the eBOX630-528-FL, its new fanless embedded system powered by the 8th generation Intel® Core™ i7/i5/i3 or Intel® Celeron® ULT processor (code name: Whisky Lake-U). The quad-core embedded box PC is designed with exceptional platform performance, abundant I/O interfaces, a wide-range power source, and triple display outputs. Its ultra-slim design allows it to be integrated for space-constraint applications. It also supports Axiomtek’s exclusive AXView 2.0 intelligent remote monitoring software to fulfill the requirement of remote monitoring. The eBOX630-528-FL is designed for smart production, machine automation, product testing, smart warehouse and AIoT-related applications.
The eBOX630-528-FL has a dual-channel DDR4-2400 SO-DIMM socket for up to 64GB of system memory. It also features two swappable 2.5” HDD drive bays and one mSATA slot for flexible storage options. For extra expansions, the rugged computer has two full-size PCIe Mini Card slots and one front-accessible SIM slot for various peripheral modules such as wireless modules, 3G/4G or LTE. Additionally, the fanless embedded box PC supports the optional PoE function through PoE board to support applications that require the use of IP cameras or any PoE device, such as vision inspection. Additionally, the eBOX630-528-FL supports up to three independent displays via two HDMI and one VGA port.
“Axiomtek’s eBOX630-528-FL adopts the Intel® Core™ ULT Whiskey Lake processor to reduce energy costs without sacrifices in functionality or performance. This ultra-slim embedded system is capable of operating under wide temperature settings ranging from -40°C to +70°C and vibration of up to 3 Grms, which ensures reliable and stable performance,” said Janney Lee, product manager of Product PM Division at Axiomtek. “To be user-friendly and easy-to-deploy, the eBOX630-528-FL is specially designed with a front-accessible SIM slot and HDD drive bays. Moreover, it supports Trusted Platform Module 2.0 (TPM 2.0) to ensure a secure system environment.”

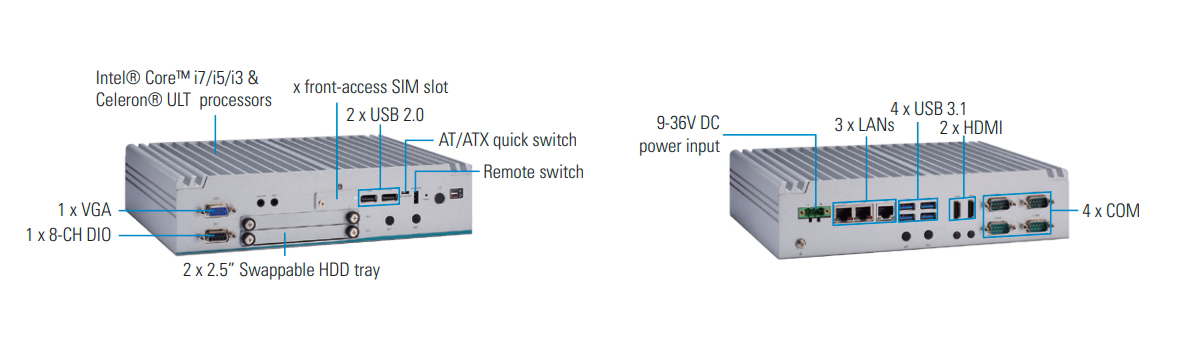

The Intel® Core™-based embedded box PC platform comes with diverse I/O interfaces including two RS-232/422/485 ports, two RS-232 ports, two USB 3.1 Gen2 ports, two USB 3.1 Gen1 ports, two USB 2.0 ports, three Gigabit Ethernet ports with Intel® Ethernet Controller I211-AT and Intel® Ethernet Connection I219-LM that supports iAMT, one 8-CH TTL port, two lockable HDMI ports, one VGA port, one audio port, and four SMA-type antenna openings. More features include AT/ATX switch, remote power switch and reset switch. The Intel® Whisky Lake-U-based system supports Windows® 10 IoT and Linux operating systems. Its flexible mounting options include VESA mount, wall mount and DIN-rail mount. Moreover, the eBOX630-528-FL supports a wide range 9V to 36V DC power input with over-voltage protection (OVP), under-voltage protection (UVP) and short current protection (SCP).
Axiomtek’s eBOX630-528-FL will be available in December 2020 for purchase. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- 8th Gen Intel® Core™ i7/i5/i3 or Intel® Celeron® ULT processor (code name: Whisky Lake-U)
- Dual-channel DDR4 2400 SO-DIMM for up to 64GB of memory
- Supports two HDMI ports, one VGA port, three GbE LAN ports, four COM ports, and six USB ports
- 9V to 36V DC wide range power input
- Fanless -40°C to +70°C* wide operating temperature range (at 0.7 m/s airflow)
- Trusted Platform Module 2.0 (TPM 2.0) onboard
- Supports AXView 2.0 intelligent remote monitoring software
