Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is pleased to announce the IPC962-525, its latest feature-rich, expandable and robust 2-slot industrial system. The 2-slot industrial computer is powered by the LGA1151 Socket 9th/8th generation Intel® Core™ processor (code name: Coffee Lake and Coffee Lake Refresh) with the Intel® H310 chipset or Intel® Q370 chipset. The compact industrial computer provides flexible expansion options with one I/O module slot and two PCIe/PCI expansion slots. It has a full-size PCI Express Mini Card slot for Wi-Fi, Bluetooth, and 4G/LTE modules or one M.2 Key B slot for 5G wireless connection. In addition, the system has front-facing I/O connectors for easy access and easy deployment. The ruggedized IPC962-525 fully serves the needs of industrial automation and equipment manufacturing applications such as machine vision, motion control, deep learning, automated optical inspection (AOI), etc.

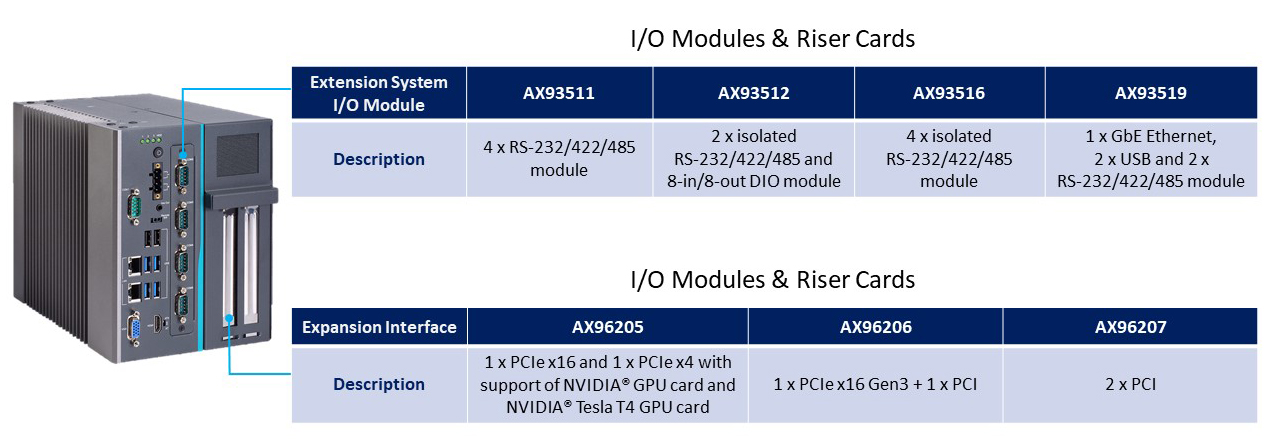

The IPC962-525 has an optional extension I/O module slot with four choices of I/O modules include AX93511, AX93516, AX93519 and AX93512. Moreover, the high-scalable IPC962-525 provides two high-speed PCIe/PCI slots that have two different combinations of expansion kits: AX96205, AX96206 and AX96207. In addition, an optional special air duct design for the Tesla T4 GPU heat dissipation can remarkably reduce the operating temperature to deliver superb GPU performance and clock frequency.
“The powerful IPC962-525 is a modular system with rugged mechanisms and optimized expandability. Its innovative modular design for PCIe/PCI expansions and flexible I/O module slot make the computer ideal for scalable configuration with regard to multi-application requests. In addition, it has a wide operating temperature range of -10°C to +60°C for mission-critical environments,” said Ivy Lee, a product manager of Product PM Division at Axiomtek.
The IPC962-525 is equipped with dual DDR4-2666/2400 SO-DIMM slots for up to 64GB of memory. The 2-slot modular system comes with a wide choice of I/O interfaces including two GbE LAN ports with Intel® Ethernet Controller I211-AT and Intel® Ethernet Connection I219-LM, one COM port, seven USB ports, one VGA port, one HDMI port, one 4-pin terminal block, and one audio (Mic-in/out). Two 2.5" swappable HDDs/SSDs supporting RAID 0,1 and one M.2 Key M 2280 socket are available for extensive storage needs. It offers a user-friendly AT/ATX DIP switch on the external I/O side and a power-on delay function to prevent power usage spikes. The all-in-one IPC962-525 supports Intel® AMT 12 (Intel® Q370) for real-time device monitoring and remote management and Trusted Platform Module 2.0 (TPM 2.0) for security through major data encryption priorities.
Axiomtek’s new 2-slot IPC962-525 is now available for purchase. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- LGA1151 Socket 9th/8th generation Intel® Core™ processor, up to 65W
- One PCIe x16 and one PCIe x4 with support of NVIDIA® GPU card and NVIDIA® Tesla T4 GPU card (AX96205)
- M.2 Key B slot for 5G wireless connection (optional)
- Two 2.5" swappable HDDs/SSDs supporting RAID 0,1 (Intel® Q370)
- Supports power-on delay function
- Supports TPM 2.0 and AMT 12 (Intel® Q370)
