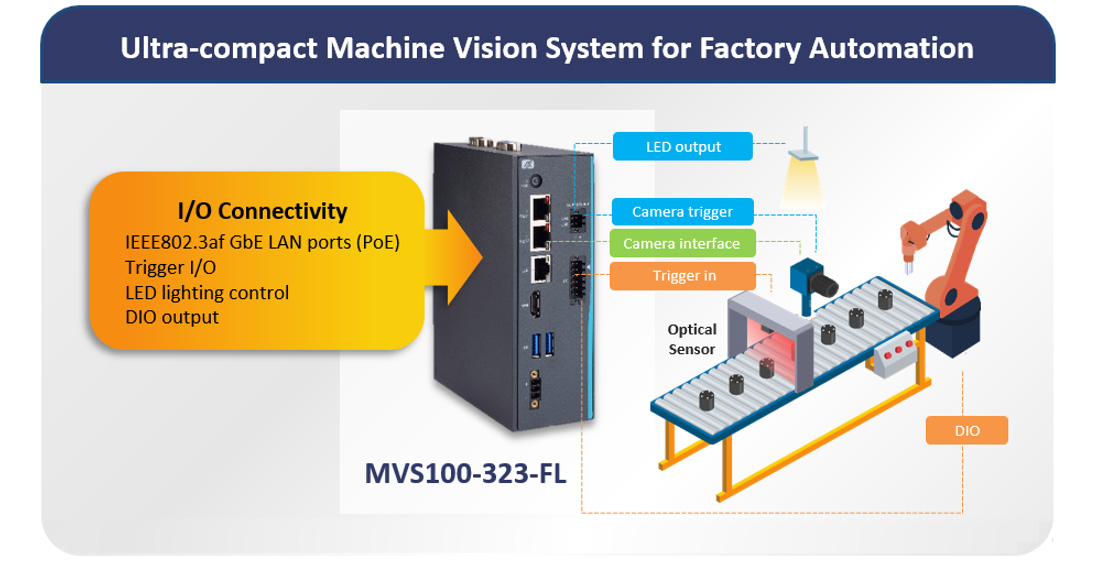

Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to introduce the MVS100-323-FL, its new ultra-compact fanless machine vision system with real-time vision I/O and camera interfaces. Its vision I/O includes trigger input/output, LED lighting control and isolated DIO. With support for two independent IEEE802.3af GbE LAN ports (PoE) for connection with industrial cameras, the vision system is specially designed for automated optical inspection (AOI), label presence inspection, optical character recognition (OCR), and defect inspection.
The MVS100-323-FL is powered by the Intel® Atom® x5-E3940 processor. The two IEEE802.3af GbE LAN ports (PoE) ensure independent bandwidth capacity and power supply for GigE cameras. Through software integration, its integrated lighting controller comes with both strobe mode and trigger mode, which can support various types of LEDs. Moreover, the ultra-compact vision system has real-time vision I/O for camera trigger to ensure high-quality image capturing. A set of isolation digital I/O channels allows this vision system to control different kinds of devices such as robotics and pneumatic actuator for object sorting.
“Machine vision inspection plays an important role in quality control in the manufacturing industry. For object inspection applications, the timing correlation between proximity sensor input, camera trigger output and illumination actuation control is crucial. The MVS100-323-FL can operate under sequential control and be synchronized with two cameras. Meanwhile, the machine vision system is equipped with a high-speed trigger function and flexible lighting control. This machine vision system achieves seamless interoperability between cameras and vision devices through the integrated real-time vision I/O.” said Wayne Chung, a product manager of Product PM Division at Axiomtek. “To ensure reliable and stable performance in harsh environments, the IP40-rated MVS100-323-FL supports a wide operating temperature range of -10°C to +55°C.”
The cost-effective MVS100-323-FL comes with DDR3L SO-DIMM sockets for up to 8GB of system memory. It offers flexible I/O expandability including one GbE LAN port with Intel® Ethernet Controller I211-AT, one RS-232/422/485 port, two USB 3.2 Gen1 ports, one HDMI port, one VGA port and one optional internal USB connector. It has a full-size PCI Express Mini Card slot in support of mSATA signal for WLAN/WWAN/mSATA modules. The machine vision system offers enhanced security through its Trusted Platform Module 2.0 (TPM 2.0).
The ultra-compact MVS100-323-FL is going to be ready for purchase in January. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- Integrated real-time vision I/O
2-CH trigger input
2 trigger output
2-CH LED lighting control
4-CH isolated DIO
- Supports camera interfaces
2 IEEE802.3af GbE LAN ports (PoE)
- Power input: 24V DC
- -10°C to +55°C operating temperature range
- Supports TPM 2.0 function
