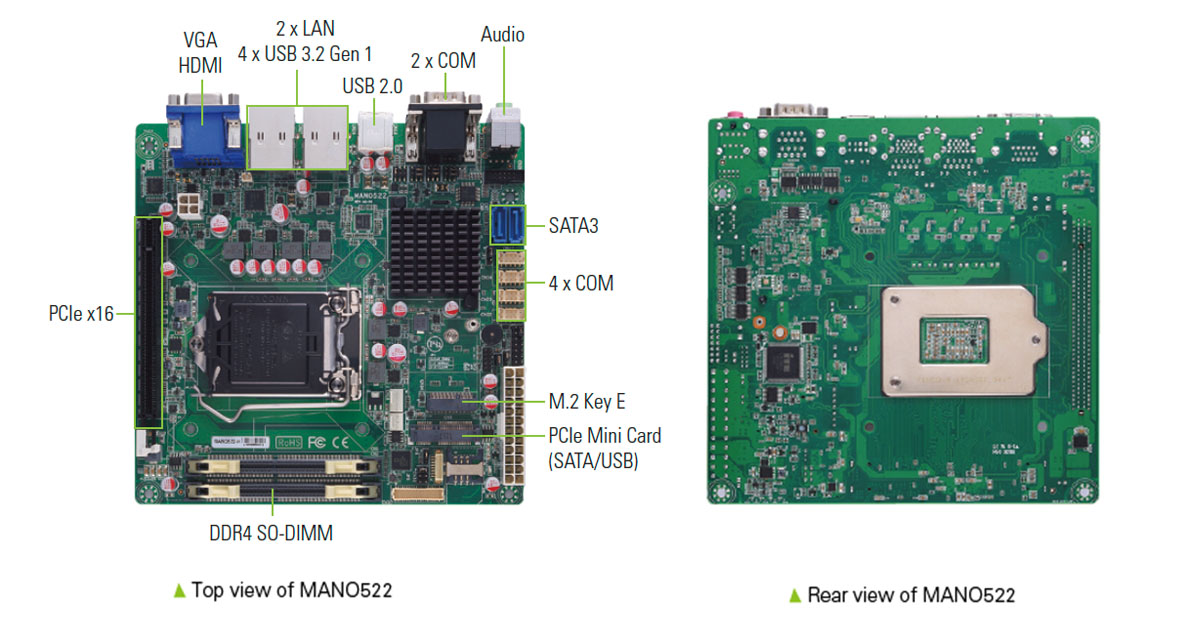

Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is pleased to announce the MANO522, a mini-ITX motherboard powered by the LGA1151 socket 9th/8th generation Intel® Core™ i7/i5/i3 processor (code name: Coffee Lake) with the Intel® H310 chipset. With a small form factor of 17 x 17 cm, this industrial motherboard is an excellent choice for space-constrained environments. Its high computing power, 4K-ready and high expandability make it well-suited for intelligent transportation, factory automation, self-service kiosks, infotainment, and digital signage.
“Axiomtek’s MANO522 is a great embedded board for industrial edge computing applications which require high-resolution graphics and reduced energy consumption,” said Michelle Mi, the product manager of the Product Planning Division at Axiomtek. “This industrial motherboard is integrated with Intel® integrated Gfx graphics engine with UHD 4K resolution and provides rapid video acceleration and dual-view capability through the VGA, HDMI and LVDS. To ensure reliable operation, the MANO522 has a wide operating temperature range of 0°C to 60°C. It also supports watchdog timer and hardware monitoring, and offers Trusted Platform Module 2.0 (TPM 2.0) for optimum security.”
The MANO522 supports two 260-pin DDR4-2666/2400 SO-DIMM sockets for up to 64GB of memory. It comes with rich I/O options, including two Gigabit LANs with Intel® Ethernet controller i211-AT and Intel® Ethernet Connection i219-LM, one HD Codec audio, four USB 3.2 Gen1, two USB 2.0, one RS-232/422/485 with +5/+12V power, five RS-232, one VGA, one HDMI, and one LVDS. The industrial-grade mini-ITX motherboard features two SATA-600 connectors and one M.2 Key M supporting NVMe for additional storage. In addition, it is equipped with one PCIe x16 and one M.2 Key E slot for wireless devices such as Wi-Fi, Bluetooth. The MANO522 is compatible with Windows® 7 and Windows® 10 operating systems.
Axiomtek’s new mini-ITX motherboard, the MANO522, is now available for purchase. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- LGA1151 9th/8th gen Intel® Core™ i7/i5/i3 processor (code name: Coffee Lake)
- Intel® H310 chipset
- 2 DDR4 SO-DIMM for up to 64GB of memory
- 4 USB 3.2 Gen1 and 2 USB 2.0
- 6 COM ports (one RS-232/422/485 with +5V/+12V power)
- 2 SATA-600 and 1 mSATA
- PCIe x16 and M.2 Key E
