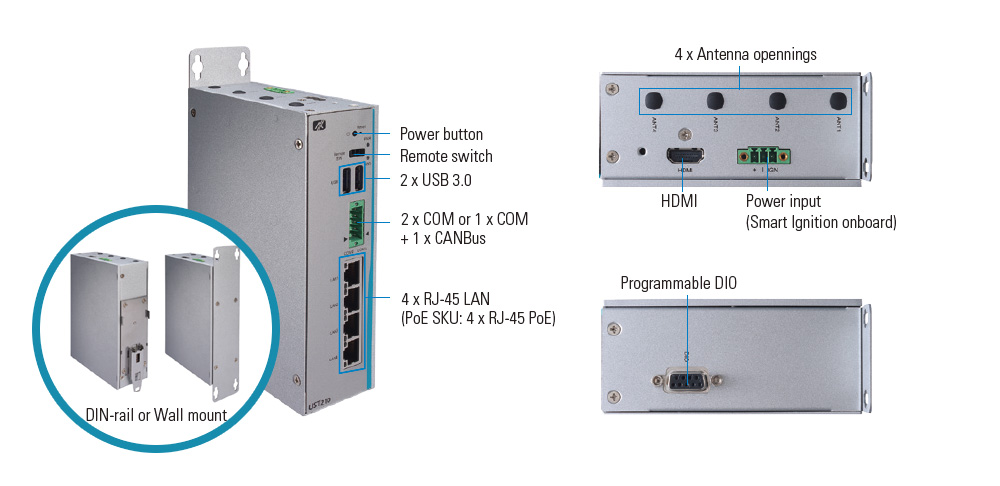

Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to introduce the UST210-83K-FL, its new compact DIN-rail fanless in-vehicle box PC powered by the Intel® Atom® x5-E3940 processor (codename: Apollo Lake-I). The UST210-83K-FL features Smart Ignition function for power on/off scheduling to protect vehicle battery from unstable voltage. Furthermore, the in-vehicle box PC is in compliance with ISO 7637-2 and can endure vibration of up to 3 Grms, ensuring stable and reliable operation under challenging environmental conditions. The ruggedized in-vehicle embedded system adopts front-accessible I/O ports for easy access and maintenance. The UST210-83K-FL is specially designed for in-vehicle applications such as vehicle controls, fleet monitoring, management system, and in-vehicle edge computing.
“An embedded system plays a critical role in automobiles due to its flexibility, versatility and safety. Axiomtek’s UST210-83K-FL offers not only expandable functionality but also Smart Ignition power control to fulfill a variety of in-vehicle application needs. In addition, the well-developed in-vehicle box PC supports 9V to 36V DC wide voltage input. The flexible IoT gateway is aimed at all kinds of in-vehicle applications, e.g., shuttle buses, police cars, ambulances or heavy-duty trucks,” said Sharon Huang, a product manager of the Product PM Division at Axiomtek. “The UST210-83K-FL can operate under a wide temperature range from -40 to +70°C and it passes MIL-STD-810G shock and vibration resistance certifications to ensure proper operations when traveling on poor road condition.”
The cost-effective UST210-83K-FL has one DDR3L-1866 SO-DIMM slot with a maximum of 8GB of system memory. Combining flexible configuration and easy expansion design, the fanless embedded system supports an array of functional I/O ports, including two COM ports or one COM port and one CANBus 2.0 A/B port supporting SocketCAN, one HDMI port, four RJ-45 Gigabit PoE ports or four RJ-45 Gigabit LAN ports (with Intel® Ethernet Controller I211-AT), two USB 3.0 ports, one DB9 8-bit programmable DIO port and four antenna openings. It also has one full-size PCI Express Mini Card slot (USB interface with SIM socket) and one half-size PCI Express Mini Card slot (mSATA/USB interface) for a wide selection of modules. A half-size mSATA occupied with its PCI Express Mini Card slot and an internal 2.5” SATA drive are available for additional storage. This flexible IoT gateway is compatible with Windows®10. It supports Axiomtek’s exclusive AXView software to fulfill the requirement of remote monitoring and features Trusted Platform Module 2.0 (TPM 2.0) to ensure critical information security. Additionally, it supports DIN rail and wall mounting for easy installation in a space-constraint control cabinet.
The UST210-83K-FL is now available for purchase. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- CE, FCC certified; ISO 7637-2 compliant
- Intel® Atom® x5-E3940 processor (codename: Apollo Lake-I)
- Extreme cost-effective with fanless and cableless design
- Wide operating temperature range from -40°C to +70°C
- Supports 9V to 36 VDC & 12/24V DC typical in-vehicle power input
- Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
- Supports COM, CAN, USB, PoE
- Supports 8-bit programmable DIO
- Supports SocketCAN
- AMS.AXView intelligent remote monitoring
