Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is pleased to announce its AX92325, the GigE compliant PCI Express card supporting two or four independent Gigabit PoE+ ports with M12 X-coded connectors for machine vision and surveillance applications in industrial IoT field.
The AX92325 supports two or four M12-type 802.3at (PoE+) compliant Ethernet ports which deliver up to 30 watts of power at 54 VDC per port which allows data and power to transmit simultaneously for multiple camera connections. Thanks to the ruggedized M12 X-coded connectors with patented I/O bracket design, the AX92325 does not occupy the space of other slots to avoid interfering and guarantee signal integrity and repeatability. Designed with Intel® Ethernet Controller I210-AT, the AX92325 supports IEEE 1588 (precise time protocol) and 9.5KB jumbo frame to enable faster and more accurate throughput of data.

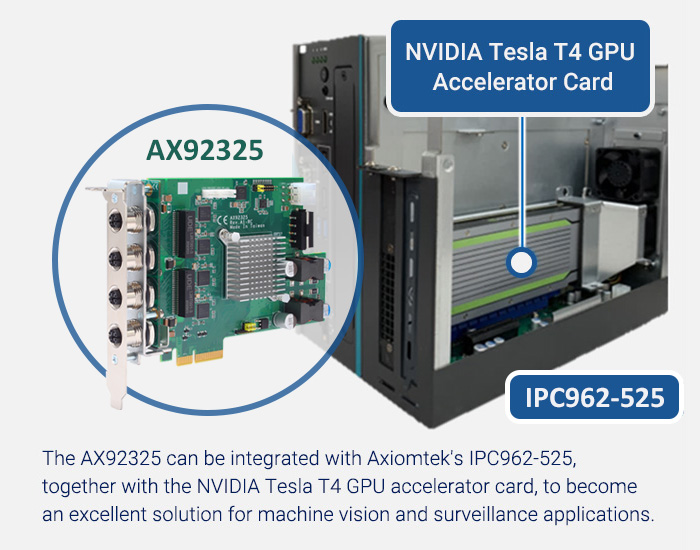

“The AX92325 can be applied to various off-the-shelf industrial systems and box PCs; for example, it can be integrated with Axiomtek's industrial PC IPC962-525, together with the NVIDIA Tesla T4 GPU accelerator card, to become an excellent solution for machine vision and surveillance applications. The AX92325 has a wide operating temperature of 0°C to 60°C, making it suitable to be used in harsh environments. Moreover, this frame grabber card features PoE power management software and supports LAN port smart on/off function. It also supports Windows® 7/10 and Linux operating systems.” said Wayne Chung, the product manager of the Industrial PC Division at Axiomtek.
Axiomtek’s AX92325 is available for purchase now. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- Four M12 x-coded connectors with special design to avoid occupying two slots
- Two or four independent Gigabit PoE+ ports
- Supports 9.5KB Jumbo Frame and IEEE 1588
- Compliant with IEEE802.3at to deliver 30W at 54 VDC per port
- PCI Express x4 compliant
- 0°C to +60°C operating temperature range
- PoE power management software
- Supports LAN port smart on/off
