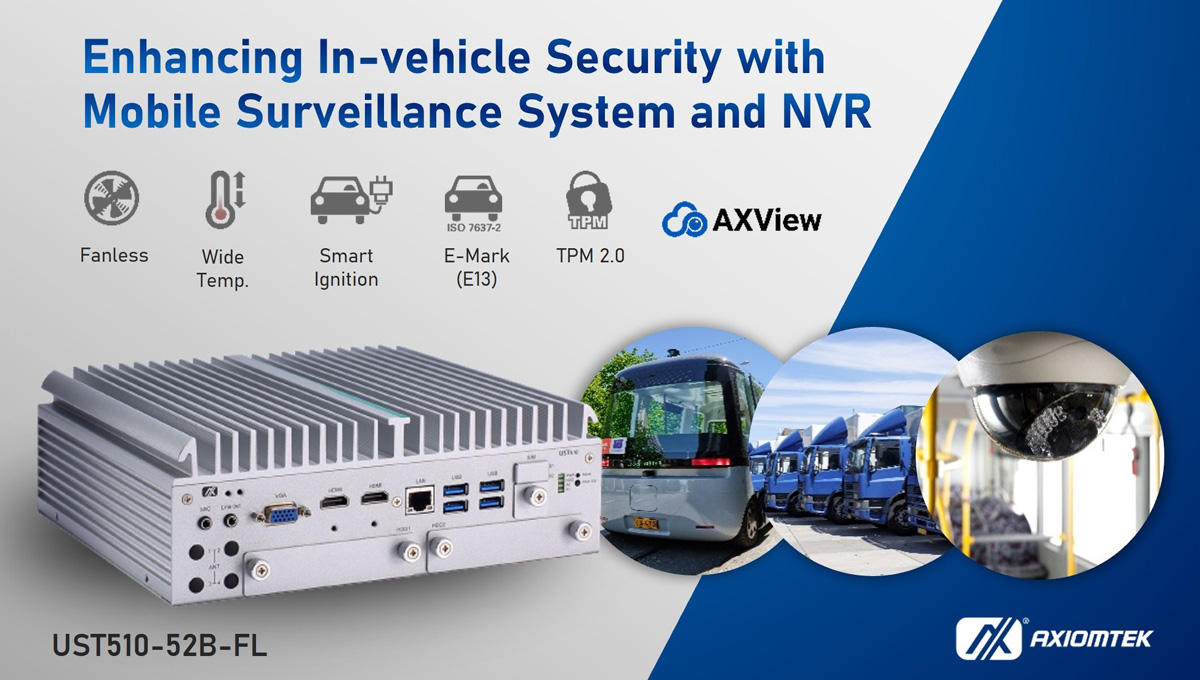

Axiomtek – a world-renowned leader relentlessly devoted in the research, development, and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to introduce the UST510-52B-FL, its E-Mark certified in-vehicle embedded system with a maximum of eight RJ-45 PoE connectors. This all-in-one in-vehicle box PC is powered by the LGA1151 Intel® Xeon®, 9th/8th generation Intel® Core™ i7/i5/i3, Celeron® or Pentium® processor (codename: Coffee Lake) with up to 65W TDP and has the Intel® C246 chipset. It supports Smart Ignition power control for the protection of vehicle battery from unstable voltages. The UST510-52B-FL is ideal for in-vehicle applications, including NVR, onboard security surveillance, vehicle controls, fleet monitoring, and onboard passenger infotainment systems.
The UST510-52B-FL can support eight RJ-45 GbE PoE outputs with its internal PoE PSU solution which can provide 90 watts of PoE power. Users can connect IP cameras directly without installing an extra PoE switch, minimizing overall deployment costs and installation space onboard. Two HDMI and VGA ports support three surveillance monitors to provide drivers and commuters with timely and accurate on-road and traffic-related information. Moreover, the UST510-52B-FL can operate under a wide range of temperatures from -40°C to 70°C and vibration of up to 3 Grms. By switching the power mode, the user-friendly in-vehicle fanless box PC features either 12 and 24 VDC typical automotive power input with Smart Ignition or wide-range 9 to 36V DC power input for general purpose.“The UST510-52B-FL integrates user-friendly design, secure protection functions, rugged reliability, and excellent system performance for in-vehicle mission-critical applications,” said Violet Hsu, the product manager of the Product PM Division at Axiomtek. “It offers two I/O windows for flexible extension options to meet different customization requirements. In addition, this fanless embedded system is featured with Axiomtek’s exclusive AXView software, allowing operators to monitor the status of each PoE port on-site without rebooting the system, as well as the overall system status from the power chart.”

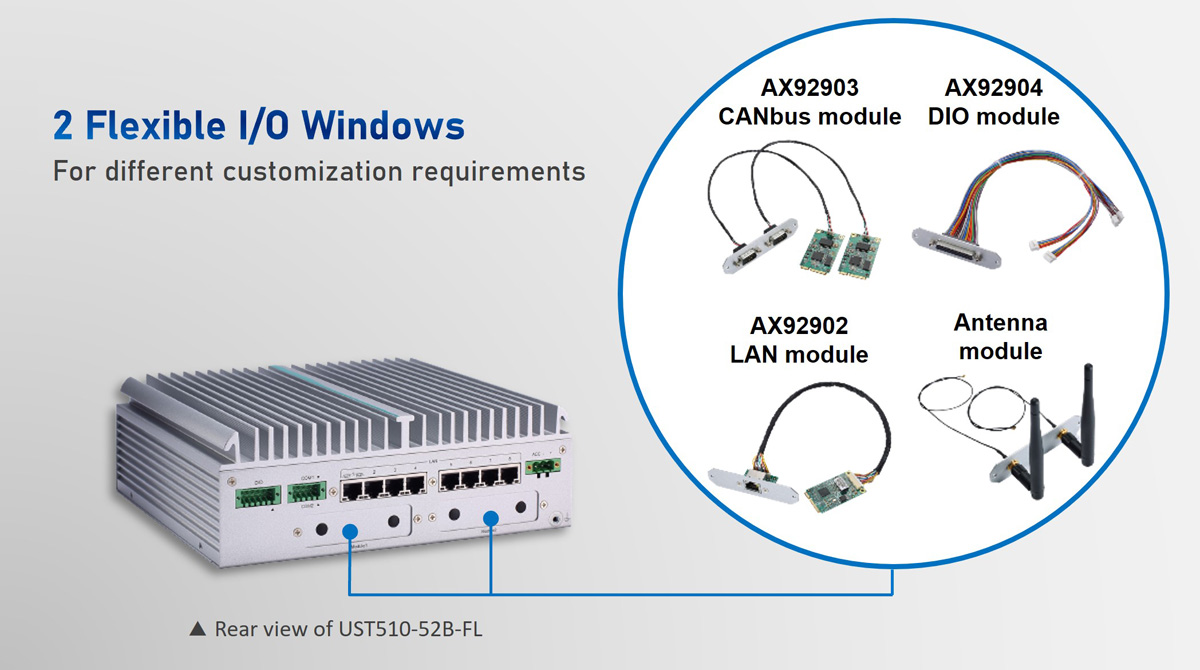

The UST510-52B-FL comes with two 260-pin DDR4-2666 SO-DIMM slots for up to 64GB of non-ECC/ECC memory. For extra expansion, the fanless embedded system offers one full-size PCIe Mini Card slot with support of mSATA/USB/PCIe and one half-size PCIe Mini Card slot with support for mSATA/USB. It also offers one M.2 Key E 2230 for Wi-Fi and Bluetooth modules, one M.2 Key B 3050/3042 for 4G LTE, and two SIM card slots for 5G radio connectivity. For additional storage, two hot-swappable 2.5-inch SATA drives with Intel® RAID 0/1 function and two mSATA are available. Additionally, the UST510-52B-FL adopts rich I/O interfaces including eight GbE PoE, four USB 3.0, two RS-232/422/485, one isolated 6-in/2-out DIO, one VGA, two HDMI, one audio (Mic-in/Line-out), and four antenna openings for WLAN and WWAN usage. Two flexible I/O windows for CAN Bus, LAN, DIO as well as Audio modules are available for various applications in a single system. The UST510-52B-FL supports Windows® 10 and Linux. It also features Trusted Platform Module 2.0 (TPM 2.0) to ensure critical information security.
The UST510-52B-FL will be available for purchase in December 2021. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- CE, FCC, and E-Mark certified
- LGA1151 Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3, Celeron®, and Pentium® processor (up to 65W) with Intel® C246 (Coffee Lake)
- Fanless and wide operating temperatures from -40°C to +70°C
- Up to 8 GbE PoE ports by RJ-45 connector type
- Supports M.2 Key B and M.2 Key E for wireless communication module
- Intelligent Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
- 2 hot-swappable HDD/SSD slots and 2 flexible I/O windows
