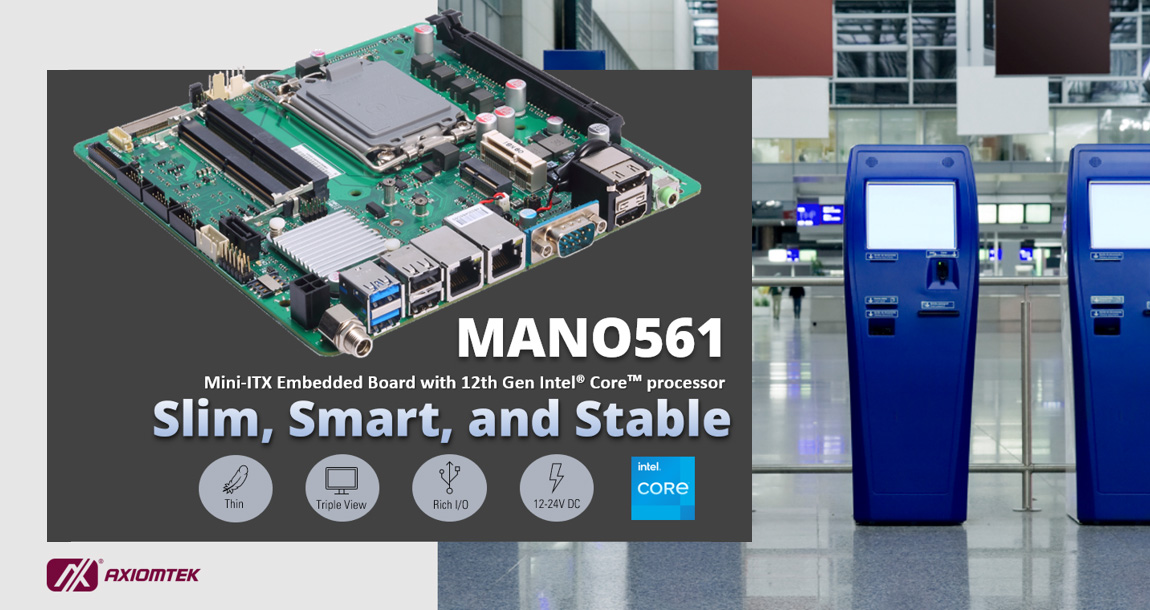

Axiomtek – a world-renowned leader relentlessly devoted to the research, development, and manufacturing of innovative and reliable industrial computer products of high efficiency – is pleased to introduce the MANO561, a high-performance thin Mini-ITX motherboard built with LGA1700 socket for the 12th generation Intel® Core™ processors (codename: Alder Lake-S). Aside from superior compute performance, this low-profile embedded motherboard delivers high-speed connectivity with flexible I/O, impressive graphics in support of triple displays, and high reliability by 12V-24V wide-range DC power to bridge the next-gen AIoT applications.
Axiomtek’s MANO561 is powered by the 12th generation Intel® Core™ i9/i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processors (up to 65W) with the Intel® H610 chipset. This embedded board has dual 260-pin DDR4-3200/2666/2400 SO-DIMM sockets with a total capacity of 64GB. When it comes to display-related features, this motherboard along with Intel® UHD graphics offers triple displays with two HDMI ports, one LVDS port, and one VGA port. Plus, it provides various wireless connectivity options which include 5G/4G/LTE connectivity with an M.2 Key B 2242/3042/3052 slot and seamless Wi-Fi connection with an M.2 Key E 2230 slot and a mini-PCIe slot. This motherboard also has a PCIe x16 slot for GPU, AI acceleration, and frame grabber card configurations.
To protect the hardware-based data, the MANO561 features onboard Trusted Platform Module 2.0 (TPM) to secure hardware-based data protection. Besides, this motherboard can withstand a wide operating temperature range from 0°C to 60°C (+32°F to +140°F) for providing stable ongoing system operation. In terms of I/O rich interfaces, the MANO561 has one 2.5GbE LAN, one GbE LAN, four 4 COM (one RS-232/422/485 and three RS-232), two USB 3.2 Gen1, five USB 2.0, one HDMI, one LVDS, one VGA, one SATA-600, 8-channel programmable digital I/O, and one HD Codec audio for ensuring a great user experience.
“Less but more, the MANO561 with a 20mm I/O height is a perfect solution for a space-constrained environment and having solid computing performance in the meantime. Worth to mention, its multiple displays support, abundant I/O interfaces and wide input voltage allow users to fulfill adequate AI application in various needs, such as industrial automation, medical, digital signage, and self-service kiosks,” said Kenny Lin, the product manager of the AIoT Team at Axiomtek. “Moreover, we have the capability to assist with any customer's industrial integration requirements and achieve fast time to market.”
The MANO561 is available for purchase now. For further product information or customization services, please visit our global website at www.axiomtek.com or contact sales representatives at info@axiomtek.com.tw.
Advanced Features of MANO561:
- LGA1700 12th gen Intel® Core™ i9/i7/i5/i3 processor (Alder Lake-S)
- 2 DDR4 SO-DIMM for up to 64GB memory
- 1 PCIe x16, and 1 M.2 Key E, 1 M.2 Key B
- 1 Full-size mini-PCIe slot
- 2 USB 3.2 Gen1 and 5 USB 2.0
- 2.5GbE LAN and 4 COM ports
- 12 to 24V DC power in
- 1 SATA-600
