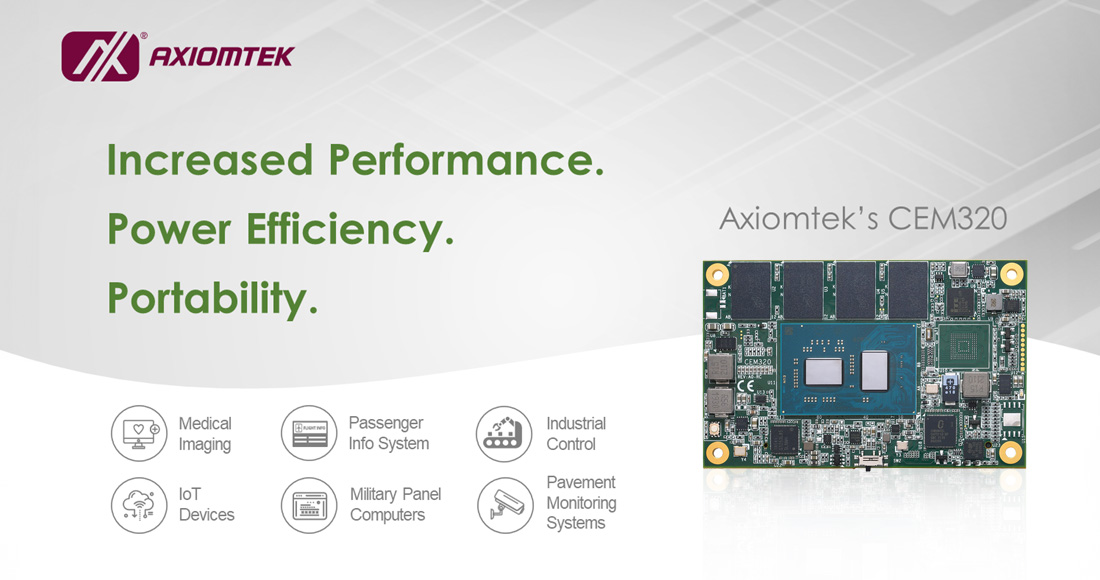

Axiomtek – a world-renowned leader relentlessly devoted to the research, development, and manufacture of series of innovative and reliable industrial computer products of high efficiency – is pleased to introduce the CEM320, a new addition to its lineup of COM Express Type 10 modules. This pocket-sized embedded module features an onboard Intel Atom® x6000E/RE series or Intel® Celeron® N/J processor (codenamed Elkhart Lake) with integrated Intel® UHD graphics and high-speed interfaces. It comes equipped with integrated onboard 16GB LPDDR4 memory, along with onboard eMMC 5.1 storage. The CEM320, with its power-efficient design, feature richness, and excellent graphics performance, is well-suited for a diverse range of applications, including medical imaging, industrial control, transportation surveillance systems, portable equipment, and automation.
“Axiomtek’s CEM320 is customizable to meet the unique needs of any market, making it ideal for system integrators seeking a robust, flexible, and budget-friendly embedded computing solution. Equipped with Intel® integrated UHD graphics, this COM Express Type 10 Mini module supports dual simultaneous displays via DDI port supporting HDMI/DVI/DisplayPort and single-channel 18/24-bit LVDS. Additionally, the CEM320 features a 2.5G LAN port with Wake-on-LAN and PXE Boot ROM enabled, as well as eMMC storage with up to 64GB memory, ensuring faster data transmission with low latency in automation applications or handheld devices in specific fields,” said Chris Chiang, the product manager of the IDS Division at Axiomtek.
The Intel Atom®-based CEM320 offers a variety of I/O options, including four PCIe x1 Gen3 lances, two USB 3.2 Gen2 ports, eight USB 2.0 ports, one 2.5G LAN port with Intel® Ethernet Controller I226-LM, two SATA 3.0 ports, HD Codec audio, one DDI, one LVDS (eDP optional), one LPC, one SPI, two serial TX/RX, one I2C, and 4-channel GPIO. These features provide customers with a wide range of options to address diverse digital connectivity challenges.
In addition to its flexible I/O expansion, the CEM320 supports a wide voltage input range of +4.75V to +20V, catering to the varying voltage input requirements of automotive or portable applications. It also offers extended operating temperature ranges of -20ºC to +70ºC or -40ºC to +85ºC with a system thermal solution to ensure stable and reliable operation in harsh environments. The CEM320 supports a watchdog timer and TPM 2.0 for enhanced system security.
Advanced Features of CEM320
- Intel Atom® x6000E/RE series or Intel® Celeron® N/J processor (Elkhart Lake)
- 8GB/16GB LPDDR4 onboard memory, up to 3200MT/s
- Up to 4 lanes of PCI Express Gen3
- 2 SATA 3.0
- 2 USB 3.2 Gen2 and 8 USB 2.0
- eMMC 5.1 and TPM 2.0 onboard
The COM Express Type 10 Mini module CEM320 is available now. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
