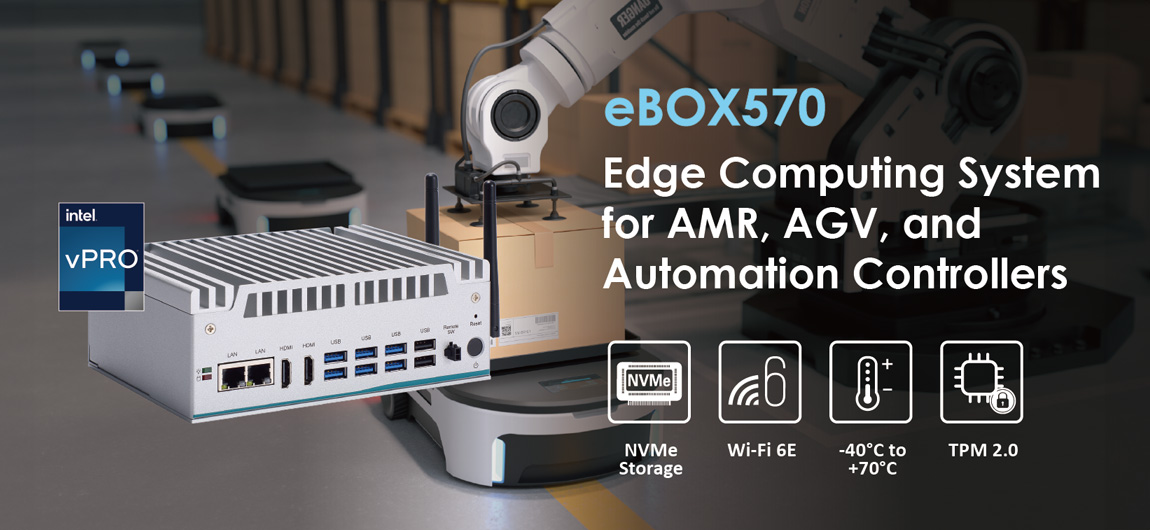

Axiomtek – a world-renowned leader relentlessly devoted to the research, development, and manufacturing of innovative and reliable industrial computer products of high efficiency – is pleased to launch the eBOX570, a high-performance edge computer specially engineered for autonomous mobile robots (AMRs) and automated guided vehicles (AGVs) controllers. The eBOX570 is powered by the 13th gen Intel® Core™ i7/i5 or Celeron® processors (codename: Raptor Lake P). With its rugged design, the fanless eBOX570 features a wide operating temperature range of -40°C to +70°C. The versatile edge computer boasts 8 dedicated bandwidth USB ports that support USB power on/off control, providing users with ample connectivity options for connected devices. The eBOX570 supports ROS 2 software and integrates seamlessly with various imaging cameras. Its optimized design empowers efficient operation and exceptional performance, giving it a competitive edge in the field of smart automation.
“The eBOX570 features Intel® vPro, which not only enhances security and remote management capabilities but also boosts performance, making it perfect for efficient operations. This competitively priced, high-performance solution meets the evolving demands of the industrial sector, delivering exceptional reliability and optimal performance in applications such as AGV, AMR, or automation controllers,” said Jason Kao, product manager of AIoT Division at Axiomtek. “Designed with environmental sustainability in mind, the eBOX570 utilizes lead-free components to minimize its environmental impact and ensure a greener future for generations. This commitment to eco-friendly practices highlights Axiomtek’s dedication to corporate social responsibility and environmental stewardship.
The rugged eBOX570 is equipped with one 260-pin DDR4-3200 SO-DIMM slot, supporting a maximum capacity of 32GB for enhanced multitasking capabilities and memory performance. It offers one M.2 Key M 2280 socket for high-speed NVMe storage. It also features one M.2 Key E 2230 socket supporting PCIe and USB 2.0 signal for Wi-Fi 6E, along with one full-size PCI Express Mini Card slot (PCIe, USB 2.0, and SIM signal) for various expansion needs. For enhanced system integrity and efficiency, the edge computing system supports TPM 2.0 to provide advanced security features and remote management capabilities. The eBOX570 offers multiple mounting options, including support for wall mount kit, DIN-rail kit, and VESA mount kit, optimizing versatility and installation convenience.
The outstanding edge computing system eBOX570 operates on a 12 VDC power input. It includes dual Gigabit Ethernet ports: one featuring Intel® I210-IT, supporting Wake-on-LAN and PXE Boot ROM, and another with Intel® I219-LM, supporting Wake-on-LAN, PXE Boot ROM, and Intel® AMT for enhanced remote management capabilities. More I/O interfaces include two RS-232/422/485, four USB 3.2 Gen2x1 (10G) Type A, two USB 3.2 Gen1x1 (5G) Type A, two USB 2.0, two HDMI 1.4b @30Hz with 4096 x 2160 resolution, one power button, one reset switch connector, one remote switch, two antenna openings. Besides, this powerful computing embedded system supports Windows 11 IoT and Linux.
The rugged fanless edge computing system eBOX570 is available for purchase. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features of eBOX570
- 13th gen Intel® Core™ processor (Raptor Lake P)
- Fanless design with operating temperature from -40°C to +70°C
- 1 DDR4 SO-DIMM for up to 32GB of memory
- Supports the USB power on/off control function
- Supports high-speed NVMe storage (M.2 Key M 2280)
- Supports Intel® vPro and TPM 2.0
