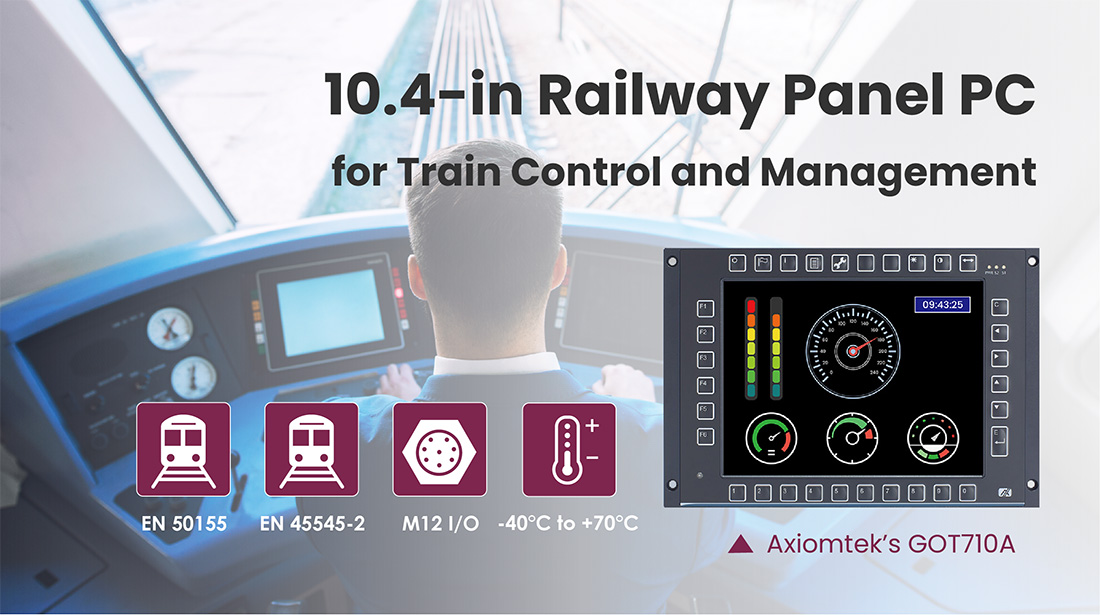

Axiomtek – a world-renowned leader relentlessly devoted to the research, development, and manufacture of innovative, highly efficient, and reliable industrial computer products – is excited to introduce the GOT710A, a 10.4" XGA TFT LCD railway panel PC powered by the Intel Atom® x6425E processor. Built to endure the rigorous demands of railway environments, this rugged railway panel PC is certified to meet EN 50155 and EN 45545-2 standards, ensuring reliable performance even in challenging conditions. The GOT710A supports a wide 24-110 VDC power input range, is compliant with EN 50155 S3 standards, and operates seamlessly across extreme temperatures from -40°C to +70°C (EN 50155 OT4). With its I/O expansion window, the GOT710A offers flexibility to meet diverse user needs, making it an ideal solution for human-machine interface (HMI) applications in the railway industry.
“The GOT710A is a ready-to-market solution that streamlines our customers’ development processes with its comprehensive safety certifications,” said Violet Hsu, Product Manager of the Transportation Product Division at Axiomtek. “Its all-in-one design accommodates a wide range of voltage inputs, eliminating the need for separate power input solutions and ensuring long-term reliability. The flexible I/O expansion window allows for quick customization to meet various requirements, making it particularly effective for aftermarket expansion projects. For enhanced safety, the GOT710A can withstand a 20ms power interruption (EN 50155 Class S3), ensuring stability during unexpected power outages. Beyond its core features, the GOT710A’s energy-efficient design promotes sustainability by reducing power consumption while maintaining high performance in harsh environments. The IP65-rated protection and rugged construction extend the product’s lifespan, minimizing replacements and material waste, which helps reduce resource consumption and carbon emissions.”
The GOT710A has a 10.4-inch XGA TFT LCD display with a projected capacitive touch and 500 nits of brightness. It features alternative keypads on the front bezel, compliant with UIC-612-01 standards, offering convenient operation and easy cleaning. The GOT710A supports one 260-pin DDR4-3200 SO-DIMM slot with up to 32GB of system memory and one M.2 Key B 2242 SSD for expansive storage. For expansion, it includes one full-size PCIe Mini Card slot (supporting USB/PCIe/SIM), one full-size Mini Card slot (supporting PCIe/USB/mSATA), and an M.2 Key A + E 2230 slot. The ruggedized panel PC features a comprehensive range of M12-coded I/O connectors, including dual RS-232/422/485, dual GbE LAN, USB 2.0, and CAN bus interfaces, delivering robust connectivity options tailored for diverse railway applications.
The GOT710A's flexibility is further enhanced by its innovative I/O expansion window, enabling seamless customization to meet specific user requirements. This feature is particularly beneficial for applications that demand quick adjustments or unique interfaces, such as integration with a Multifunction Vehicle Bus (MVB). Moreover, the railway panel PC offers flexible mounting options including wall mounting and VESA mounting. Windows® 11 and Linux operating systems are also available. Axiomtek's GOT710A is available now. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features:
- Sunlight readable 10.4" XGA TFT LCD
- Intel Atom® processor x6425E, 12W (Elkart Lake)
- Alternative keypad control on the front bezel, compliant with UIC-612-01
- M12-type lockable connectors design
- Auto-dimming for different environments
- -40°C to +70°C wide temperature range (EN 50155 OT4)
- Typical 24 to 110 VDC wide power input range, EN 50155 Class S3 20ms power interruption protection
- EN 50155 and EN 45545-2 certified for railway applications
